GCC Middle and Back End API Reference
text_art::text_widget Class Reference

#include <widget.h>

Inheritance diagram for text_art::text_widget:
Inheritance graph
[legend]

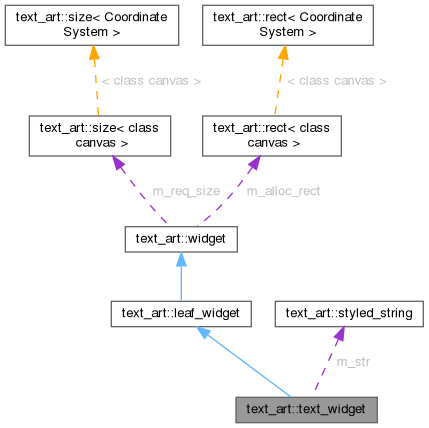

Collaboration diagram for text_art::text_widget:
Collaboration graph
[legend]

Public Member Functions

 text_widget (styled_string str)
const char * get_desc () const override
canvas::size_t calc_req_size () final override
void paint_to_canvas (canvas &canvas) final override
void update_child_alloc_rects () final override
canvas to_canvas (const style_manager &style_mgr)
canvas::size_t get_req_size ()
const canvas::size_t get_req_size () const
void set_alloc_rect (const canvas::rect_t &rect)
int get_req_w () const
int get_req_h () const
const canvas::rect_t & get_alloc_rect () const
int get_alloc_w () const
int get_alloc_h () const
int get_min_x () const
int get_max_x () const
int get_next_x () const
int get_min_y () const
int get_max_y () const
int get_next_y () const
canvas::range_t get_x_range () const
canvas::range_t get_y_range () const
const canvas::coord_t & get_top_left () const

Static Public Attributes

static const bool DEBUG_GEOMETRY = false

Private Attributes

styled_string m_str
canvas::size_t m_req_size
canvas::rect_t m_alloc_rect

Detailed Description

Concrete widget subclass for a text string.

Constructor & Destructor Documentation

◆ text_widget()

text_art::text_widget::text_widget ( styled_string str)
inline

References text_art::leaf_widget::leaf_widget(), and m_str.

Member Function Documentation

◆ calc_req_size()

canvas::size_t text_widget::calc_req_size ( )
finaloverridevirtual

Implements text_art::widget.

References m_str.

◆ get_alloc_h()

int text_art::widget::get_alloc_h ( ) const
inlineinherited

References m_alloc_rect.

◆ get_alloc_rect()

const canvas::rect_t & text_art::widget::get_alloc_rect ( ) const
inlineinherited

References m_alloc_rect.

Referenced by text_art::wrapper_widget::update_child_alloc_rects().

◆ get_alloc_w()

int text_art::widget::get_alloc_w ( ) const
inlineinherited

References m_alloc_rect.

Referenced by text_art::tree_widget::update_child_alloc_rects(), and text_art::vbox_widget::update_child_alloc_rects().

◆ get_desc()

const char * text_widget::get_desc ( ) const
overridevirtual
class text_art::text_widget : public text_art::leaf_widget.

Implements text_art::widget.

◆ get_max_x()

int text_art::widget::get_max_x ( ) const
inlineinherited

References m_alloc_rect.

◆ get_max_y()

int text_art::widget::get_max_y ( ) const
inlineinherited

References m_alloc_rect.

Referenced by text_art::tree_widget::paint_to_canvas().

◆ get_min_x()

int text_art::widget::get_min_x ( ) const
inlineinherited

References m_alloc_rect.

Referenced by text_art::tree_widget::paint_to_canvas(), text_art::tree_widget::update_child_alloc_rects(), and text_art::vbox_widget::update_child_alloc_rects().

◆ get_min_y()

int text_art::widget::get_min_y ( ) const
inlineinherited

References m_alloc_rect.

Referenced by text_art::tree_widget::update_child_alloc_rects(), and text_art::vbox_widget::update_child_alloc_rects().

◆ get_next_x()

int text_art::widget::get_next_x ( ) const
inlineinherited

References m_alloc_rect.

◆ get_next_y()

int text_art::widget::get_next_y ( ) const
inlineinherited

References m_alloc_rect.

◆ get_req_h()

int text_art::widget::get_req_h ( ) const
inlineinherited

References m_req_size.

◆ get_req_size() [1/2]

canvas::size_t text_art::widget::get_req_size ( )
inlineinherited

References calc_req_size(), DEBUG_GEOMETRY, get_desc(), and m_req_size.

Referenced by to_canvas().

◆ get_req_size() [2/2]

const canvas::size_t text_art::widget::get_req_size ( ) const
inlineinherited

References m_req_size.

◆ get_req_w()

int text_art::widget::get_req_w ( ) const
inlineinherited

References m_req_size.

◆ get_top_left()

const canvas::coord_t & text_art::widget::get_top_left ( ) const
inlineinherited

References m_alloc_rect.

Referenced by text_art::canvas_widget::paint_to_canvas(), and text_art::text_widget::paint_to_canvas().

◆ get_x_range()

canvas::range_t text_art::widget::get_x_range ( ) const
inlineinherited

References m_alloc_rect.

◆ get_y_range()

canvas::range_t text_art::widget::get_y_range ( ) const
inlineinherited

References m_alloc_rect.

◆ paint_to_canvas()

void text_widget::paint_to_canvas ( canvas & canvas)
finaloverridevirtual

Implements text_art::widget.

References text_art::widget::get_top_left(), m_str, and text_art::canvas::paint_text().

◆ set_alloc_rect()

void text_art::widget::set_alloc_rect ( const canvas::rect_t & rect)
inlineinherited

References DEBUG_GEOMETRY, get_desc(), m_alloc_rect, text_art::rect< CoordinateSystem >::m_size, text_art::rect< CoordinateSystem >::m_top_left, and update_child_alloc_rects().

Referenced by to_canvas().

◆ to_canvas()

canvas widget::to_canvas ( const style_manager & style_mgr)
inherited
class text_art::widget.

References get_req_size(), paint_to_canvas(), and set_alloc_rect().

◆ update_child_alloc_rects()

void text_art::leaf_widget::update_child_alloc_rects ( )
inlinefinaloverridevirtualinherited

Implements text_art::widget.

References final().

Field Documentation

◆ DEBUG_GEOMETRY

const bool text_art::widget::DEBUG_GEOMETRY = false
staticinherited

Referenced by get_req_size(), and set_alloc_rect().

◆ m_alloc_rect

canvas::rect_t text_art::widget::m_alloc_rect
privateinherited

Referenced by get_alloc_h(), get_alloc_rect(), get_alloc_w(), get_max_x(), get_max_y(), get_min_x(), get_min_y(), get_next_x(), get_next_y(), get_top_left(), get_x_range(), get_y_range(), set_alloc_rect(), and widget().

◆ m_req_size

canvas::size_t text_art::widget::m_req_size
privateinherited

Referenced by get_req_h(), get_req_size(), get_req_size(), get_req_w(), and widget().

◆ m_str

styled_string text_art::text_widget::m_str
private

Referenced by calc_req_size(), paint_to_canvas(), and text_widget().

The documentation for this class was generated from the following files:
