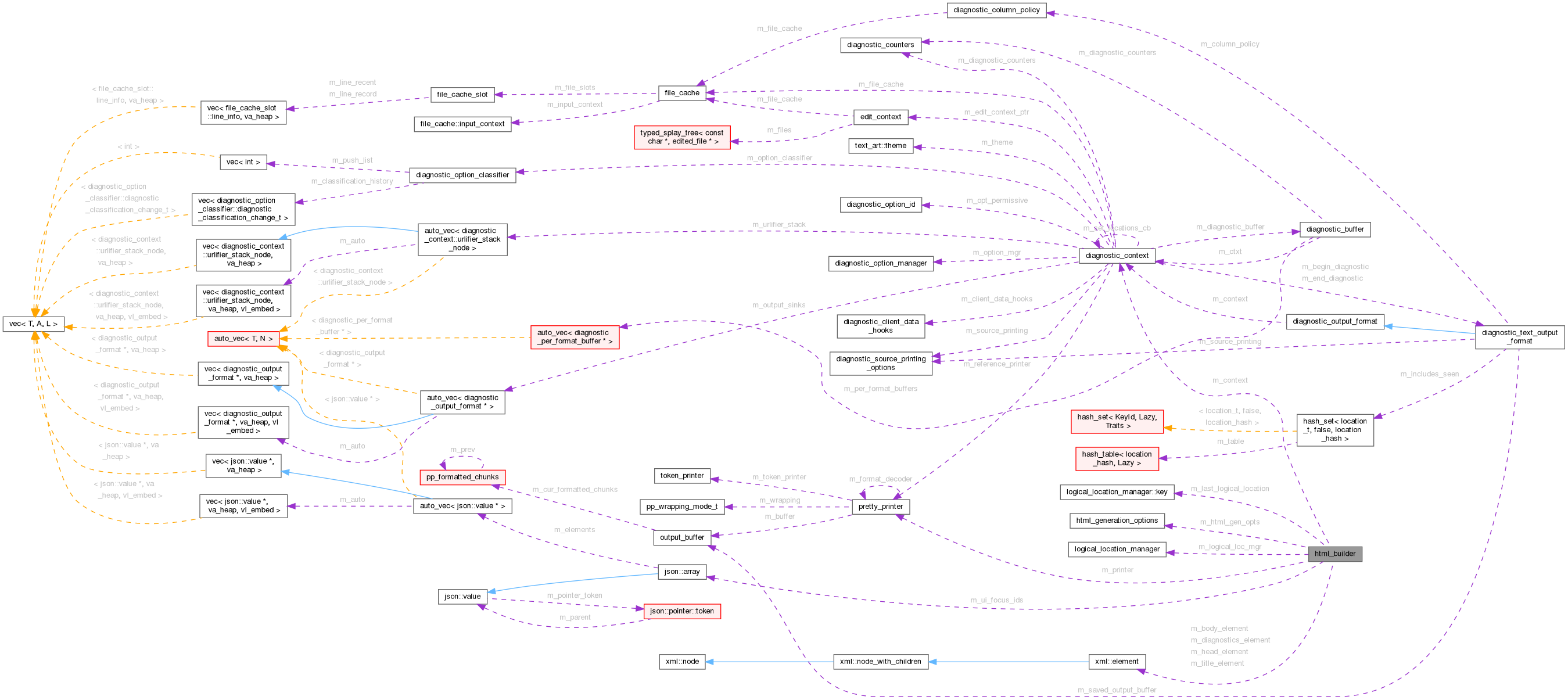

Collaboration diagram for html_builder:

[legend]

Public Member Functions
	html_builder (diagnostic_context &context, pretty_printer &pp, const line_maps *line_maps, const html_generation_options &html_gen_opts)
void	set_main_input_filename (const char *name)
void	on_report_diagnostic (const diagnostic_info &diagnostic, diagnostic_t orig_diag_kind, diagnostic_html_format_buffer *buffer)
void	emit_diagram (const diagnostic_diagram &diagram)
void	end_group ()
std::unique_ptr< xml::element >	take_current_diagnostic ()
void	flush_to_file (FILE *outf)
const xml::document &	get_document () const
void	set_printer (pretty_printer &pp)
std::unique_ptr< xml::element >	make_element_for_metadata (const diagnostic_metadata &metadata)
std::unique_ptr< xml::element >	make_element_for_patch (const diagnostic_info &diagnostic)
void	add_focus_id (std::string focus_id)

Private Member Functions
void	add_stylesheet (std::string url)
std::unique_ptr< xml::element >	make_element_for_diagnostic (const diagnostic_info &diagnostic, diagnostic_t orig_diag_kind, bool alert)
std::unique_ptr< xml::element >	make_metadata_element (label_text label, label_text url)
void	add_at_nesting_level (size_t nesting_level, std::unique_ptr< xml::element > child_diag_element)
void	push_nesting_level ()
void	pop_nesting_level ()

Private Attributes
diagnostic_context &	m_context
pretty_printer *	m_printer
const line_maps *	m_line_maps
html_generation_options	m_html_gen_opts
const logical_location_manager *	m_logical_loc_mgr
std::unique_ptr< xml::document >	m_document
xml::element *	m_head_element
xml::element *	m_title_element
xml::element *	m_diagnostics_element
std::unique_ptr< xml::element >	m_cur_diagnostic_element
std::vector< xml::element * >	m_cur_nesting_levels
int	m_next_diag_id
json::array	m_ui_focus_ids
logical_location	m_last_logical_location
location_t	m_last_location
expanded_location	m_last_expanded_location

Friends
class	diagnostic_html_format_buffer

Detailed Description

A class for managing HTML output of diagnostics.

  Implemented:
  - message text

  Known limitations/missing functionality:
  - title for page
  - file/line/column
  - error vs warning
  - CWEs
  - rules
  - fix-it hints
  - paths

Constructor & Destructor Documentation

◆ html_builder()

html_builder::html_builder	(	diagnostic_context &	context,
		pretty_printer &	pp,
		const line_maps *	line_maps,
		const html_generation_options &	html_gen_opts )


html_builder's ctor.

References m_context, m_diagnostics_element, m_head_element, m_html_gen_opts, m_last_expanded_location, m_last_location, m_line_maps, m_logical_loc_mgr, m_next_diag_id, m_printer, m_title_element, and UNKNOWN_LOCATION.

Member Function Documentation

◆ add_at_nesting_level()

void html_builder::add_at_nesting_level	(	size_t	nesting_level,
		std::unique_ptr< xml::element >	child_diag_element )

private

References add_nesting_level_attr(), xml::printer::append(), gcc_assert, xml::printer::get_insertion_point(), m_cur_diagnostic_element, m_cur_nesting_levels, pop_nesting_level(), xml::printer::pop_tag(), push_nesting_level(), and xml::printer::push_tag().

Referenced by on_report_diagnostic().

◆ add_focus_id()

void html_builder::add_focus_id ( std::string focus_id )

inline

References m_ui_focus_ids.

Referenced by make_element_for_diagnostic().

◆ add_stylesheet()

void html_builder::add_stylesheet ( std::string url )

private

References gcc_assert, m_head_element, xml::printer::push_tag(), and xml::printer::set_attr().

◆ emit_diagram()

void html_builder::emit_diagram ( const diagnostic_diagram & diagram )

Implementation of diagnostic_context::m_diagrams.m_emission_cb
for HTML output.

References gcc_assert, and m_cur_diagnostic_element.

◆ end_group()

void html_builder::end_group ( )


Implementation of "end_group_cb" for HTML output.

References m_cur_diagnostic_element, and m_diagnostics_element.

◆ flush_to_file()

void html_builder::flush_to_file ( FILE * outf )

Create a top-level object, and add it to all the results
(and other entities) we've seen so far.

Flush it all to OUTF.

References xml::printer::add_raw(), gcc_assert, m_document, m_head_element, m_html_gen_opts, m_ui_focus_ids, xml::printer::pop_tag(), pp_formatted_text(), pp_string(), and xml::printer::push_tag().

◆ get_document()

const xml::document & html_builder::get_document ( ) const

inline

References m_document.

◆ make_element_for_diagnostic()

std::unique_ptr< xml::element > html_builder::make_element_for_diagnostic	(	const diagnostic_info &	diagnostic,
		diagnostic_t	orig_diag_kind,
		bool	alert )

private

Make a <div class="gcc-diagnostic"> for DIAGNOSTIC.

If ALERT is true, make it be a PatternFly alert (see
https://pf3.patternfly.org/v3/pattern-library/widgets/#alerts) and
show severity text (e.g. "error: ").

If ALERT is false, don't show the severity text and don't show
the filename if it's the same as the previous diagnostic within the
diagnostic group.

References _, add_focus_id(), add_labelled_value(), xml::printer::add_text(), xml::printer::add_text_from_pp(), xml::printer::append(), diagnostic_column_policy::converted_column(), diagnostic_expand_location(), gcc_assert, get_diagnostic_kind_text(), xml::printer::get_insertion_point(), get_label_for_logical_location_kind(), xml::printer::get_num_open_tags(), get_pf_class_for_alert_div(), get_pf_class_for_alert_icon(), m_context, m_last_expanded_location, m_last_location, m_last_logical_location, m_logical_loc_mgr, m_next_diag_id, m_printer, make_div(), make_element_for_metadata(), make_element_for_patch(), make_span(), path, xml::printer::pop_tag(), pp_clear_output_area(), pp_formatted_text(), pp_output_formatted_text(), pp_printf(), pp_printf_n(), print_path_as_html(), xml::printer::push_tag(), xml::printer::push_tag_with_class(), and xml::printer::set_attr().

Referenced by on_report_diagnostic().

◆ make_element_for_metadata()

std::unique_ptr< xml::element > html_builder::make_element_for_metadata ( const diagnostic_metadata & metadata )

References diagnostic_metadata::get_cwe(), get_cwe_url(), diagnostic_metadata::get_num_rules(), diagnostic_metadata::get_rule(), make_metadata_element(), make_span(), pp_formatted_text(), and pp_printf().

Referenced by make_element_for_diagnostic().

◆ make_element_for_patch()

std::unique_ptr< xml::element > html_builder::make_element_for_patch ( const diagnostic_info & diagnostic )

References edit_context::add_fixits(), element, free(), edit_context::generate_diff(), and m_context.

Referenced by make_element_for_diagnostic().

◆ make_metadata_element()

std::unique_ptr< xml::element > html_builder::make_metadata_element	(	label_text	label,
		label_text	url )

private

References xml::printer::add_text(), make_span(), xml::printer::pop_tag(), xml::printer::push_tag(), and xml::printer::set_attr().

Referenced by make_element_for_metadata().

◆ on_report_diagnostic()

void html_builder::on_report_diagnostic	(	const diagnostic_info &	diagnostic,
		diagnostic_t	orig_diag_kind,
		diagnostic_html_format_buffer *	buffer )


Implementation of "on_report_diagnostic" for HTML output.

References add_at_nesting_level(), diagnostic_html_format_buffer, fnotice(), gcc_assert, m_context, m_cur_diagnostic_element, m_cur_nesting_levels, m_last_logical_location, diagnostic_html_format_buffer::m_results, and make_element_for_diagnostic().

◆ pop_nesting_level()

void html_builder::pop_nesting_level ( )

private

References gcc_assert, m_cur_diagnostic_element, and m_cur_nesting_levels.

Referenced by add_at_nesting_level().

◆ push_nesting_level()

void html_builder::push_nesting_level ( )

private

References xml::node_with_children::add_child(), add_nesting_level_attr(), gcc_assert, m_cur_diagnostic_element, and m_cur_nesting_levels.

Referenced by add_at_nesting_level().

◆ set_main_input_filename()

void html_builder::set_main_input_filename ( const char * name )

References gcc_assert, and m_title_element.

◆ set_printer()

void html_builder::set_printer ( pretty_printer & pp )

inline

References m_printer.

◆ take_current_diagnostic()

std::unique_ptr< xml::element > html_builder::take_current_diagnostic ( )

inline

References m_cur_diagnostic_element.

◆ diagnostic_html_format_buffer

friend class diagnostic_html_format_buffer

friend

References diagnostic_html_format_buffer.

Referenced by diagnostic_html_format_buffer, and on_report_diagnostic().

Field Documentation

◆ m_context

diagnostic_context& html_builder::m_context

private

Referenced by html_builder(), make_element_for_diagnostic(), make_element_for_patch(), and on_report_diagnostic().

◆ m_cur_diagnostic_element

std::unique_ptr<xml::element> html_builder::m_cur_diagnostic_element

private

Referenced by add_at_nesting_level(), emit_diagram(), end_group(), on_report_diagnostic(), pop_nesting_level(), push_nesting_level(), and take_current_diagnostic().

◆ m_cur_nesting_levels

std::vector<xml::element *> html_builder::m_cur_nesting_levels

private

Referenced by add_at_nesting_level(), on_report_diagnostic(), pop_nesting_level(), and push_nesting_level().

◆ m_diagnostics_element

xml::element* html_builder::m_diagnostics_element

private

Referenced by end_group(), and html_builder().

◆ m_document

std::unique_ptr<xml::document> html_builder::m_document

private

Referenced by flush_to_file(), and get_document().

◆ m_head_element

xml::element* html_builder::m_head_element

private

Referenced by add_stylesheet(), flush_to_file(), and html_builder().

◆ m_html_gen_opts

html_generation_options html_builder::m_html_gen_opts

private

Referenced by flush_to_file(), and html_builder().

◆ m_last_expanded_location

expanded_location html_builder::m_last_expanded_location

private

Referenced by html_builder(), and make_element_for_diagnostic().

◆ m_last_location

location_t html_builder::m_last_location

private

Referenced by html_builder(), and make_element_for_diagnostic().

◆ m_last_logical_location

logical_location html_builder::m_last_logical_location

private

Referenced by make_element_for_diagnostic(), and on_report_diagnostic().

◆ m_line_maps

const line_maps* html_builder::m_line_maps

private

Referenced by html_builder().

◆ m_logical_loc_mgr

const logical_location_manager* html_builder::m_logical_loc_mgr

private

Referenced by html_builder(), and make_element_for_diagnostic().

◆ m_next_diag_id

int html_builder::m_next_diag_id

private

Referenced by html_builder(), and make_element_for_diagnostic().

◆ m_printer

pretty_printer* html_builder::m_printer

private

Referenced by html_builder(), make_element_for_diagnostic(), and set_printer().

◆ m_title_element

xml::element* html_builder::m_title_element

private

Referenced by html_builder(), and set_main_input_filename().

◆ m_ui_focus_ids

json::array html_builder::m_ui_focus_ids

private

Referenced by add_focus_id(), and flush_to_file().

The documentation for this class was generated from the following file:

diagnostic-format-html.cc
