diagnostics::sarif_builder Class Reference

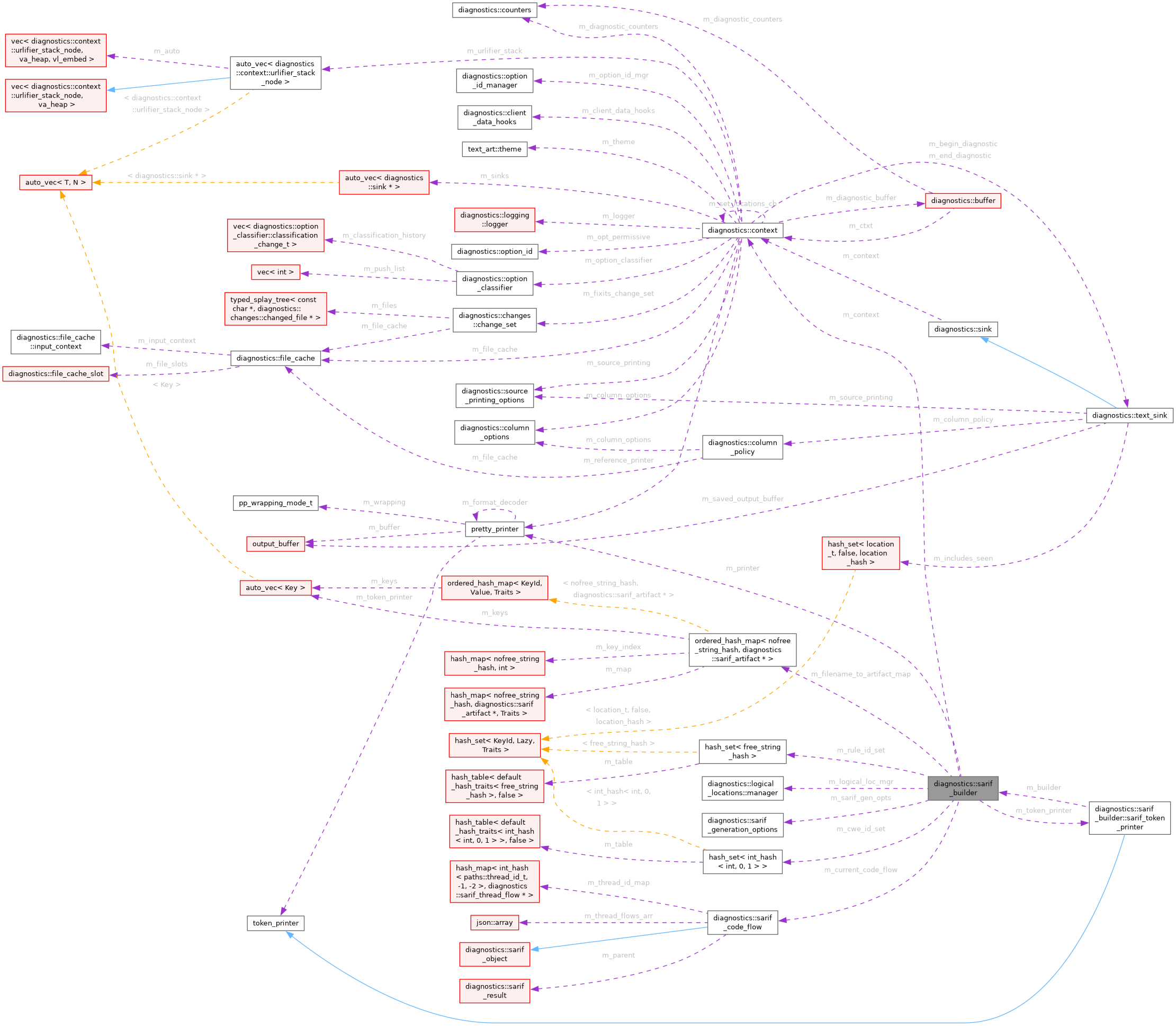

Collaboration diagram for diagnostics::sarif_builder:

Data Structures
class	sarif_token_printer

Public Member Functions
	sarif_builder (diagnostics::context &dc, pretty_printer &printer, const line_maps *line_maps, std::unique_ptr< sarif_serialization_format > serialization_format, const sarif_generation_options &sarif_gen_opts)
	~sarif_builder ()
void	dump (FILE *out, int indent) const
void	set_printer (pretty_printer &printer)
const logical_locations::manager *	get_logical_location_manager () const
void	set_main_input_filename (const char *name)
void	on_report_diagnostic (const diagnostic_info &diagnostic, enum kind orig_diag_kind, sarif_sink_buffer *buffer)
void	emit_diagram (const diagram &d)
void	end_group ()
void	report_global_digraph (const lazily_created< digraphs::digraph > &)
std::unique_ptr< sarif_result >	take_current_result ()
std::unique_ptr< sarif_log >	flush_to_object ()
void	flush_to_file (FILE *outf)
std::unique_ptr< json::array >	make_locations_arr (sarif_location_manager &loc_mgr, const diagnostic_info &diagnostic, enum diagnostic_artifact_role role)
std::unique_ptr< sarif_location >	make_location_object (sarif_location_manager *loc_mgr, const rich_location &rich_loc, logical_locations::key logical_loc, enum diagnostic_artifact_role role)
std::unique_ptr< sarif_location >	make_location_object (sarif_location_manager &loc_mgr, location_t where, enum diagnostic_artifact_role role)
std::unique_ptr< sarif_message >	make_message_object (const char *msg) const
std::unique_ptr< sarif_message >	make_message_object_for_diagram (const diagram &d)
std::unique_ptr< sarif_artifact_content >	maybe_make_artifact_content_object (const char *filename) const
std::unique_ptr< sarif_artifact_location >	make_artifact_location_object (const char *filename)
const sarif_code_flow *	get_code_flow_for_event_ids () const
diagnostics::context &	get_context () const
pretty_printer *	get_printer () const
token_printer &	get_token_printer ()
enum sarif_version	get_version () const
size_t	num_results () const
sarif_result &	get_result (size_t idx)
const sarif_generation_options &	get_opts () const
std::unique_ptr< sarif_logical_location >	make_minimal_sarif_logical_location (logical_locations::key)

Private Member Functions
std::unique_ptr< sarif_result >	make_result_object (const diagnostic_info &diagnostic, enum kind orig_diag_kind, unsigned idx_within_parent)
void	add_any_include_chain (sarif_location_manager &loc_mgr, sarif_location &location_obj, location_t where)
void	set_any_logical_locs_arr (sarif_location &location_obj, logical_locations::key logical_loc)
std::unique_ptr< sarif_location >	make_location_object (sarif_location_manager &loc_mgr, const paths::event &event, enum diagnostic_artifact_role role)
std::unique_ptr< sarif_code_flow >	make_code_flow_object (sarif_result &result, unsigned idx_within_parent, const paths::path &path)
void	populate_thread_flow_location_object (sarif_result &result, sarif_thread_flow_location &thread_flow_loc_obj, const paths::event &event, int event_execution_idx)
std::unique_ptr< json::array >	maybe_make_kinds_array (paths::event::meaning m) const
std::unique_ptr< sarif_physical_location >	maybe_make_physical_location_object (location_t loc, enum diagnostic_artifact_role role, int column_override, const content_renderer *snippet_renderer)
std::unique_ptr< sarif_artifact_location >	make_artifact_location_object (location_t loc)
std::unique_ptr< sarif_artifact_location >	make_artifact_location_object_for_pwd () const
std::unique_ptr< sarif_region >	maybe_make_region_object (location_t loc, int column_override) const
std::unique_ptr< sarif_region >	maybe_make_region_object_for_context (location_t loc, const content_renderer *snippet_renderer) const
std::unique_ptr< sarif_region >	make_region_object_for_hint (const fixit_hint &hint) const
int	ensure_sarif_logical_location_for (logical_locations::key k)
std::unique_ptr< sarif_multiformat_message_string >	make_multiformat_message_string (const char *msg) const
std::unique_ptr< sarif_log >	make_top_level_object (std::unique_ptr< sarif_invocation > invocation_obj, std::unique_ptr< json::array > results)
std::unique_ptr< sarif_run >	make_run_object (std::unique_ptr< sarif_invocation > invocation_obj, std::unique_ptr< json::array > results)
std::unique_ptr< sarif_tool >	make_tool_object ()
std::unique_ptr< sarif_tool_component >	make_driver_tool_component_object ()
std::unique_ptr< json::array >	maybe_make_taxonomies_array () const
std::unique_ptr< sarif_tool_component >	maybe_make_cwe_taxonomy_object () const
std::unique_ptr< sarif_tool_component_reference >	make_tool_component_reference_object_for_cwe () const
std::unique_ptr< sarif_reporting_descriptor >	make_reporting_descriptor_object_for_warning (const diagnostic_info &diagnostic, enum kind orig_diag_kind, const char *option_text)
std::unique_ptr< sarif_reporting_descriptor >	make_reporting_descriptor_object_for_cwe_id (int cwe_id) const
std::unique_ptr< sarif_reporting_descriptor_reference >	make_reporting_descriptor_reference_object_for_cwe_id (int cwe_id)
sarif_artifact &	get_or_create_artifact (const char *filename, enum diagnostic_artifact_role role, bool embed_contents)
char *	get_source_lines (const char *filename, int start_line, int end_line) const
std::unique_ptr< sarif_artifact_content >	maybe_make_artifact_content_object (const char *filename, int start_line, int end_line, const content_renderer *r) const
std::unique_ptr< sarif_fix >	make_fix_object (const rich_location &rich_loc)
std::unique_ptr< sarif_artifact_change >	make_artifact_change_object (const rich_location &richloc)
std::unique_ptr< sarif_replacement >	make_replacement_object (const fixit_hint &hint) const
std::unique_ptr< sarif_artifact_content >	make_artifact_content_object (const char *text) const
int	get_sarif_column (expanded_location exploc) const
std::unique_ptr< json::object >	make_stack_from_backtrace ()

Private Attributes
diagnostics::context &	m_context
pretty_printer *	m_printer
const line_maps *	m_line_maps
sarif_token_printer	m_token_printer
const logical_locations::manager *	m_logical_loc_mgr
std::unique_ptr< sarif_invocation >	m_invocation_obj
std::unique_ptr< json::array >	m_results_array
std::unique_ptr< sarif_result >	m_cur_group_result
ordered_hash_map< nofree_string_hash, sarif_artifact * >	m_filename_to_artifact_map
bool	m_seen_any_relative_paths
hash_set< free_string_hash >	m_rule_id_set
std::unique_ptr< json::array >	m_rules_arr
hash_set< int_hash< int, 0, 1 > >	m_cwe_id_set
std::unique_ptr< sarif_array_of_unique< sarif_logical_location > >	m_cached_logical_locs
std::unique_ptr< sarif_array_of_unique< sarif_graph > >	m_run_graphs
int	m_tabstop
std::unique_ptr< sarif_serialization_format >	m_serialization_format
const sarif_generation_options	m_sarif_gen_opts
unsigned	m_next_result_idx
sarif_code_flow *	m_current_code_flow

Friends
class	sarif_sink_buffer

Detailed Description

A class for managing SARIF output (for -fdiagnostics-format=sarif-stderr
and -fdiagnostics-format=sarif-file).

As diagnostics occur, we build "result" JSON objects, and
accumulate state:
- which source files are referenced
- which warnings are emitted
- which CWEs are used

At the end of the compile, we use the above to build the full SARIF
object tree, adding the result objects to the correct place, and
creating objects for the various source files, warnings and CWEs
referenced.

Implemented:
- fix-it hints
- CWE metadata
- diagnostic groups (see limitations below)
- logical locations (e.g. cfun)
- labelled ranges (as annotations)
- secondary ranges without labels (as related locations)

Known limitations:
- GCC supports nesting of diagnostics (one-deep nesting via
  auto_diagnostic_group, and arbitrary nesting via
  auto_diagnostic_nesting_level).  These are captured in the SARIF
  as related locations, and so we only capture location and message
  information from such nested diagnostics (e.g. we ignore fix-it
  hints on them).  Diagnostics within an auto_diagnostic_nesting_level
  have their nesting level captured as a property.
- although we capture command-line arguments (section 3.20.2), we don't
  yet capture response files.
- doesn't capture "artifact.encoding" property
  (SARIF v2.1.0 section 3.24.9).
- doesn't capture hashes of the source files
  ("artifact.hashes" property (SARIF v2.1.0 section 3.24.11).
- doesn't capture the "analysisTarget" property
  (SARIF v2.1.0 section 3.27.13).
- doesn't capture -Werror cleanly
- doesn't capture inlining information (can SARIF handle this?)
- doesn't capture macro expansion information (can SARIF handle this?).
- doesn't capture any diagnostics::metadata::rules associated with
  a diagnostic.

Constructor & Destructor Documentation

sarif_builder()

diagnostics::sarif_builder::sarif_builder	(	diagnostics::context &	dc,
		pretty_printer &	printer,
		const line_maps *	line_maps,
		std::unique_ptr< sarif_serialization_format >	serialization_format,
		const sarif_generation_options &	sarif_gen_opts )

class sarif_builder.

sarif_builder's ctor.

References false, gcc_assert, diagnostics::context::get_client_data_hooks(), diagnostics::client_data_hooks::get_logical_location_manager(), m_cached_logical_locs, m_context, m_cur_group_result, m_current_code_flow, m_invocation_obj, m_line_maps, m_logical_loc_mgr, m_next_result_idx, m_printer, m_results_array, m_rule_id_set, m_rules_arr, m_run_graphs, m_sarif_gen_opts, m_seen_any_relative_paths, m_serialization_format, m_tabstop, and m_token_printer.

Referenced by make_location_object(), and diagnostics::sarif_builder::sarif_token_printer::sarif_token_printer().

~sarif_builder()

diagnostics::sarif_builder::~sarif_builder

(

)

References m_filename_to_artifact_map.

Member Function Documentation

add_any_include_chain()

void diagnostics::sarif_builder::add_any_include_chain ( sarif_location_manager & loc_mgr, sarif_location & location_obj, location_t where )

private

If WHERE was #included from somewhere, add a worklist item
to LOC_MGR to lazily add a location for the #include location,
and relationships between it and the LOCATION_OBJ.
Compare with diagnostics::context::report_current_module, but rather
than iterating the current chain, we add the next edge and iterate
in the worklist, so that edges are only added once.

References diagnostics::sarif_location_manager::add_relationship_to_worklist(), BUILTINS_LOCATION, m_line_maps, and map.

Referenced by make_location_object(), make_location_object(), and make_location_object().

dump()

void diagnostics::sarif_builder::dump	(	FILE *	out,
		int	indent ) const

References diagnostics::dumping::emit_heading(), m_sarif_gen_opts, and m_serialization_format.

emit_diagram()

void diagnostics::sarif_builder::emit_diagram

(

const diagram &

d

)

Implementation of diagnostics::context::m_diagrams.m_emission_cb
for SARIF output.

References gcc_assert, and m_cur_group_result.

end_group()

void diagnostics::sarif_builder::end_group

(

)

Implementation of "end_group_cb" for SARIF output.

References m_cur_group_result, and m_results_array.

ensure_sarif_logical_location_for()

int diagnostics::sarif_builder::ensure_sarif_logical_location_for ( logical_locations::key k )

private

Ensure that m_cached_logical_locs has a "logicalLocation" object
(SARIF v2.1.0 section 3.33) for K, and return its index within the
array.

References ensure_sarif_logical_location_for(), gcc_assert, m_cached_logical_locs, m_logical_loc_mgr, and diagnostics::maybe_get_sarif_kind().

Referenced by ensure_sarif_logical_location_for(), and make_minimal_sarif_logical_location().

flush_to_file()

void diagnostics::sarif_builder::flush_to_file

(

FILE *

outf

)

Create a top-level object, and add it to all the results
(and other entities) we've seen so far.

Flush it all to OUTF.

References DIAGNOSTICS_LOG_SCOPE_PRINTF0, flush_to_object(), m_context, and m_serialization_format.

flush_to_object()

std::unique_ptr< sarif_log > diagnostics::sarif_builder::flush_to_object

(

)

Create a top-level object, and add it to all the results
(and other entities) we've seen so far, moving ownership
to the object.

References DIAGNOSTICS_LOG_SCOPE_PRINTF0, m_context, m_invocation_obj, m_results_array, and make_top_level_object().

Referenced by flush_to_file().

get_code_flow_for_event_ids()

const sarif_code_flow * diagnostics::sarif_builder::get_code_flow_for_event_ids ( ) const

inline

References m_current_code_flow.

get_context()

diagnostics::context & diagnostics::sarif_builder::get_context ( ) const

inline

References m_context.

Referenced by diagnostics::sarif_result::on_nested_diagnostic(), and diagnostics::sarif_invocation::prepare_to_flush().

get_logical_location_manager()

const logical_locations::manager * diagnostics::sarif_builder::get_logical_location_manager ( ) const

inline

References m_logical_loc_mgr.

get_opts()

const sarif_generation_options & diagnostics::sarif_builder::get_opts ( ) const

inline

References m_sarif_gen_opts.

Referenced by populate_thread_flow_location_object().

get_or_create_artifact()

sarif_artifact & diagnostics::sarif_builder::get_or_create_artifact ( const char * filename, enum diagnostic_artifact_role role, bool embed_contents )

private

Ensure that we have an "artifact" object (SARIF v2.1.0 section 3.24)
for FILENAME, adding it to m_filename_to_artifact_map if not already
found, and adding ROLE to it.
If EMBED_CONTENTS is true, then flag that we will attempt to embed the
contents of this artifact when writing it out.

References diagnostics::sarif_artifact::add_role(), diagnostics::analysis_target, diagnostics::debug_output_file, gcc_unreachable, m_context, m_filename_to_artifact_map, make_artifact_location_object(), diagnostics::client_data_hooks::maybe_get_sarif_source_language(), diagnostics::result_file, diagnostics::scanned_file, json::object::set(), json::object::set_string(), and diagnostics::traced_file.

Referenced by maybe_make_physical_location_object(), and set_main_input_filename().

get_printer()

pretty_printer * diagnostics::sarif_builder::get_printer ( ) const

inline

References m_printer.

Referenced by make_location_object(), diagnostics::sarif_result::on_nested_diagnostic(), and diagnostics::sarif_ice_notification::sarif_ice_notification().

get_result()

sarif_result & diagnostics::sarif_builder::get_result ( size_t idx )

inline

References gcc_assert.

get_sarif_column()

int diagnostics::sarif_builder::get_sarif_column ( expanded_location exploc ) const

private

Get the column number within EXPLOC.

References location_compute_display_column(), m_context, and m_tabstop.

Referenced by make_region_object_for_hint(), and maybe_make_region_object().

get_source_lines()

char * diagnostics::sarif_builder::get_source_lines ( const char * filename, int start_line, int end_line ) const

private

Attempt to read the given range of lines from FILENAME; return
a freshly-allocated 0-terminated buffer containing them, or nullptr.

References diagnostics::char_span::get_buffer(), i, diagnostics::char_span::length(), and m_context.

Referenced by maybe_make_artifact_content_object().

get_token_printer()

token_printer & diagnostics::sarif_builder::get_token_printer ( )

inline

References m_token_printer.

get_version()

enum sarif_version diagnostics::sarif_builder::get_version ( ) const

inline

References m_sarif_gen_opts.

Referenced by diagnostics::sarif_invocation::add_notification_for_ice(), diagnostics::sarif_ice_notification::add_related_location(), and make_top_level_object().

make_artifact_change_object()

std::unique_ptr< sarif_artifact_change > diagnostics::sarif_builder::make_artifact_change_object ( const rich_location & richloc )

private

Make an "artifactChange" object (SARIF v2.1.0 section 3.56) for RICHLOC.

References i, make_artifact_location_object(), and make_replacement_object().

Referenced by make_fix_object().

make_artifact_content_object()

std::unique_ptr< sarif_artifact_content > diagnostics::sarif_builder::make_artifact_content_object ( const char * text ) const

private

Make an "artifactContent" object (SARIF v2.1.0 section 3.3) for TEXT.

Referenced by make_replacement_object().

make_artifact_location_object() [1/2]

std::unique_ptr< sarif_artifact_location > diagnostics::sarif_builder::make_artifact_location_object

(

const char *

filename

)

Make an "artifactLocation" object (SARIF v2.1.0 section 3.4) for FILENAME,
or return nullptr.

References m_seen_any_relative_paths, and PWD_PROPERTY_NAME.

Referenced by get_or_create_artifact(), make_artifact_change_object(), make_artifact_location_object(), maybe_make_physical_location_object(), and diagnostics::sarif_invocation::sarif_invocation().

make_artifact_location_object() [2/2]

std::unique_ptr< sarif_artifact_location > diagnostics::sarif_builder::make_artifact_location_object ( location_t loc )

private

Make an "artifactLocation" object (SARIF v2.1.0 section 3.4) for LOC,
or return nullptr.

References LOCATION_FILE, and make_artifact_location_object().

make_artifact_location_object_for_pwd()

std::unique_ptr< sarif_artifact_location > diagnostics::sarif_builder::make_artifact_location_object_for_pwd ( ) const

private

Make an "artifactLocation" object (SARIF v2.1.0 section 3.4) for the pwd,
for use in the "run.originalUriBaseIds" property (SARIF v2.1.0
section 3.14.14) when we have any relative paths.

References free(), gcc_assert, and diagnostics::make_pwd_uri_str().

Referenced by make_run_object().

make_code_flow_object()

std::unique_ptr< sarif_code_flow > diagnostics::sarif_builder::make_code_flow_object ( sarif_result & result, unsigned idx_within_parent, const paths::path & path )

private

Make a "codeFlow" object (SARIF v2.1.0 section 3.36) for PATH.

References diagnostics::sarif_thread_flow::add_location(), i, m_current_code_flow, path, and populate_thread_flow_location_object().

Referenced by make_result_object().

make_driver_tool_component_object()

std::unique_ptr< sarif_tool_component > diagnostics::sarif_builder::make_driver_tool_component_object ( )

private

Make a "toolComponent" object (SARIF v2.1.0 section 3.19) for what SARIF
calls the "driver" (see SARIF v2.1.0 section 3.18.1).

References free(), diagnostics::client_data_hooks::get_any_version_info(), m_context, and m_rules_arr.

Referenced by make_tool_object().

make_fix_object()

std::unique_ptr< sarif_fix > diagnostics::sarif_builder::make_fix_object ( const rich_location & richloc )

private

Make a "fix" object (SARIF v2.1.0 section 3.55) for RICHLOC.

References make_artifact_change_object(), and json::object::set().

Referenced by make_result_object().

make_location_object() [1/3]

std::unique_ptr< sarif_location > diagnostics::sarif_builder::make_location_object ( sarif_location_manager & loc_mgr, const paths::event & event, enum diagnostic_artifact_role role )

private

Make a "location" object (SARIF v2.1.0 section 3.28) for EVENT
within a paths::path.

References add_any_include_chain(), pretty_printer::clone(), json::object::get(), get_printer(), make_message_object(), maybe_make_physical_location_object(), pp_formatted_text(), and set_any_logical_locs_arr().

make_location_object() [2/3]

std::unique_ptr< sarif_location > diagnostics::sarif_builder::make_location_object	(	sarif_location_manager &	loc_mgr,
		location_t	loc,
		enum diagnostic_artifact_role	role )

Make a "location" object (SARIF v2.1.0 section 3.28) for WHERE
within an include chain.

References add_any_include_chain(), json::object::get(), and maybe_make_physical_location_object().

make_location_object() [3/3]

std::unique_ptr< sarif_location > diagnostics::sarif_builder::make_location_object	(	sarif_location_manager *	loc_mgr,
		const rich_location &	rich_loc,
		logical_locations::key	logical_loc,
		enum diagnostic_artifact_role	role )

Make a "location" object (SARIF v2.1.0 section 3.28) for RICH_LOC
and LOGICAL_LOC.
Use LOC_MGR for any locations that need "id" values, and for
any worklist items.
Note that we might not always have a LOC_MGR; see
https://github.com/oasis-tcs/sarif-spec/issues/712

References add_any_include_chain(), diagnostics::sarif_location_manager::add_relationship_to_worklist(), diagnostic_finish(), diagnostic_initialize(), diagnostics::source_printing_options::enabled, json::object::get(), diagnostics::sink::get_printer(), diagnostics::context::get_source_printing_options(), i, m_context, make_message_object(), make_multiformat_message_string(), maybe_make_physical_location_object(), maybe_make_region_object(), pp_formatted_text(), diagnostics::source_print_policy::print(), sarif_builder(), set_any_logical_locs_arr(), json::object::set_bool(), diagnostics::context::set_escape_format(), and diagnostics::sarif_location_manager::worklist_item::unlabelled_secondary_location.

Referenced by make_locations_arr(), diagnostics::make_sarif_node(), diagnostics::sarif_result::on_nested_diagnostic(), populate_thread_flow_location_object(), and diagnostics::sarif_location_manager::process_worklist_item().

make_locations_arr()

std::unique_ptr< json::array > diagnostics::sarif_builder::make_locations_arr	(	sarif_location_manager &	loc_mgr,
		const diagnostic_info &	diagnostic,
		enum diagnostic_artifact_role	role )

Make an array suitable for use as the "locations" property of:
- a "result" object (SARIF v2.1.0 section 3.27.12), or
- a "notification" object (SARIF v2.1.0 section 3.58.4).
Use LOC_MGR for any locations that need "id" values.

References diagnostics::client_data_hooks::get_current_logical_location(), m_context, and make_location_object().

Referenced by make_result_object(), and diagnostics::sarif_ice_notification::sarif_ice_notification().

make_message_object()

std::unique_ptr< sarif_message > diagnostics::sarif_builder::make_message_object

(

const char *

msg

)

const

Make a "message" object (SARIF v2.1.0 section 3.11) for MSG.

References msg, and diagnostics::set_string_property_escaping_braces().

Referenced by make_location_object(), make_location_object(), make_result_object(), diagnostics::make_sarif_edge(), diagnostics::make_sarif_graph(), diagnostics::make_sarif_node(), diagnostics::sarif_result::on_nested_diagnostic(), and diagnostics::sarif_ice_notification::sarif_ice_notification().

make_message_object_for_diagram()

std::unique_ptr< sarif_message > diagnostics::sarif_builder::make_message_object_for_diagram

(

const diagram &

d

)

Make a "message" object (SARIF v2.1.0 section 3.11) for D.
We emit the diagram as a code block within the Markdown part
of the message.

References diagnostics::diagram::get_alt_text(), diagnostics::diagram::get_canvas(), m_printer, pp_clear_output_area(), pp_formatted_text(), pp_set_prefix(), pp_take_prefix(), text_art::canvas::print_to_pp(), and diagnostics::set_string_property_escaping_braces().

Referenced by diagnostics::sarif_result::on_diagram().

make_minimal_sarif_logical_location()

std::unique_ptr< sarif_logical_location > diagnostics::sarif_builder::make_minimal_sarif_logical_location

(

logical_locations::key

logical_loc

)

Ensure that theRuns.logicalLocations (3.14.17) has a "logicalLocation" object
(SARIF v2.1.0 section 3.33) for LOGICAL_LOC.
Create and return a minimal logicalLocation object referring to the
full object by index.

References ensure_sarif_logical_location_for(), gcc_assert, and m_logical_loc_mgr.

Referenced by set_any_logical_locs_arr(), and diagnostics::sarif_property_bag::set_logical_location().

make_multiformat_message_string()

std::unique_ptr< sarif_multiformat_message_string > diagnostics::sarif_builder::make_multiformat_message_string ( const char * msg ) const

private

Make a "multiformatMessageString object" (SARIF v2.1.0 section 3.12)
for MSG.

References msg, and diagnostics::set_string_property_escaping_braces().

Referenced by make_location_object(), and maybe_make_cwe_taxonomy_object().

make_region_object_for_hint()

std::unique_ptr< sarif_region > diagnostics::sarif_builder::make_region_object_for_hint ( const fixit_hint & hint ) const

private

Make a "region" object (SARIF v2.1.0 section 3.30) for the deletion region
of HINT (as per SARIF v2.1.0 section 3.57.3).

References expand_location(), and get_sarif_column().

Referenced by make_replacement_object().

make_replacement_object()

std::unique_ptr< sarif_replacement > diagnostics::sarif_builder::make_replacement_object ( const fixit_hint & hint ) const

private

Make a "replacement" object (SARIF v2.1.0 section 3.57) for HINT.

References make_artifact_content_object(), make_region_object_for_hint(), and json::object::set().

Referenced by make_artifact_change_object().

make_reporting_descriptor_object_for_cwe_id()

std::unique_ptr< sarif_reporting_descriptor > diagnostics::sarif_builder::make_reporting_descriptor_object_for_cwe_id ( int cwe_id ) const

private

Make a "reportingDescriptor" object (SARIF v2.1.0 section 3.49)
for CWE_ID, for use within the CWE taxa array.

References free(), diagnostics::get_cwe_url(), pp_formatted_text(), and pp_printf().

Referenced by maybe_make_cwe_taxonomy_object().

make_reporting_descriptor_object_for_warning()

std::unique_ptr< sarif_reporting_descriptor > diagnostics::sarif_builder::make_reporting_descriptor_object_for_warning ( const diagnostic_info & diagnostic, enum kind orig_diag_kind, const char * option_text )

private

Make a "reportingDescriptor" object (SARIF v2.1.0 section 3.49)
for a GCC warning.

References free(), and m_context.

Referenced by make_result_object().

make_reporting_descriptor_reference_object_for_cwe_id()

std::unique_ptr< sarif_reporting_descriptor_reference > diagnostics::sarif_builder::make_reporting_descriptor_reference_object_for_cwe_id ( int cwe_id )

private

Make a "reportingDescriptorReference" object (SARIF v2.1.0 section 3.52)
referencing CWE_ID, for use within a result object.
Also, add CWE_ID to m_cwe_id_set.

References gcc_assert, m_cwe_id_set, make_tool_component_reference_object_for_cwe(), pp_formatted_text(), and pp_printf().

Referenced by make_result_object().

make_result_object()

std::unique_ptr< sarif_result > diagnostics::sarif_builder::make_result_object ( const diagnostic_info & diagnostic, enum kind orig_diag_kind, unsigned idx_within_parent )

private

Make a "result" object (SARIF v2.1.0 section 3.27) for DIAGNOSTIC.

References free(), diagnostics::metadata::get_cwe(), diagnostics::metadata::get_lazy_digraphs(), m_context, diagnostic::m_metadata, m_printer, m_rule_id_set, m_rules_arr, make_code_flow_object(), make_fix_object(), make_locations_arr(), make_message_object(), make_reporting_descriptor_object_for_warning(), make_reporting_descriptor_reference_object_for_cwe_id(), diagnostics::make_rule_id_for_diagnostic_kind(), diagnostics::make_sarif_graph(), diagnostics::metadata::maybe_add_sarif_properties(), diagnostics::maybe_get_sarif_level(), path, pp_clear_output_area(), pp_formatted_text(), diagnostics::result_file, and json::object::set().

Referenced by on_report_diagnostic().

make_run_object()

std::unique_ptr< sarif_run > diagnostics::sarif_builder::make_run_object ( std::unique_ptr< sarif_invocation > invocation_obj, std::unique_ptr< json::array > results )

private

Make a "run" object (SARIF v2.1.0 section 3.14).

References diagnostics::sarif_artifact::embed_contents_p(), m_cached_logical_locs, m_filename_to_artifact_map, m_run_graphs, m_seen_any_relative_paths, make_artifact_location_object_for_pwd(), make_tool_object(), maybe_make_taxonomies_array(), diagnostics::sarif_artifact::populate_contents(), diagnostics::sarif_artifact::populate_roles(), PWD_PROPERTY_NAME, and json::object::set().

Referenced by make_top_level_object().

make_stack_from_backtrace()

std::unique_ptr< json::object > diagnostics::sarif_builder::make_stack_from_backtrace ( )

private

Attempt to generate a JSON object representing a backtrace,
for adding to ICE notifications.

References diagnostics::bt_callback().

Referenced by on_report_diagnostic().

make_tool_component_reference_object_for_cwe()

std::unique_ptr< sarif_tool_component_reference > diagnostics::sarif_builder::make_tool_component_reference_object_for_cwe ( ) const

private

Make a "toolComponentReference" object (SARIF v2.1.0 section 3.54) that
references the CWE taxonomy.

Referenced by make_reporting_descriptor_reference_object_for_cwe_id().

make_tool_object()

std::unique_ptr< sarif_tool > diagnostics::sarif_builder::make_tool_object ( )

private

Make a "tool" object (SARIF v2.1.0 section 3.18).

References diagnostics::client_data_hooks::get_any_version_info(), diagnostics::client_plugin_info::get_full_name(), diagnostics::client_plugin_info::get_short_name(), diagnostics::client_plugin_info::get_version(), m_context, make_driver_tool_component_object(), and json::object::set().

Referenced by make_run_object().

make_top_level_object()

std::unique_ptr< sarif_log > diagnostics::sarif_builder::make_top_level_object ( std::unique_ptr< sarif_invocation > invocation_obj, std::unique_ptr< json::array > results )

private

Make a top-level "sarifLog" object (SARIF v2.1.0 section 3.13).

References get_version(), make_run_object(), diagnostics::sarif_version_to_property(), diagnostics::sarif_version_to_url(), and json::object::set().

Referenced by flush_to_object().

maybe_make_artifact_content_object() [1/2]

std::unique_ptr< sarif_artifact_content > diagnostics::sarif_builder::maybe_make_artifact_content_object

(

const char *

filename

)

const

Make an "artifactContent" object (SARIF v2.1.0 section 3.3) for the
full contents of FILENAME.

References diagnostics::char_span::get_buffer(), diagnostics::char_span::length(), and m_context.

Referenced by maybe_make_region_object_for_context(), and diagnostics::sarif_artifact::populate_contents().

maybe_make_artifact_content_object() [2/2]

std::unique_ptr< sarif_artifact_content > diagnostics::sarif_builder::maybe_make_artifact_content_object ( const char * filename, int start_line, int end_line, const content_renderer * r ) const

private

Make an "artifactContent" object (SARIF v2.1.0 section 3.3) for the given
run of lines within FILENAME (including the endpoints).
If R is non-NULL, use it to potentially set the "rendered"
property (3.3.4).

References free(), get_source_lines(), and r.

maybe_make_cwe_taxonomy_object()

std::unique_ptr< sarif_tool_component > diagnostics::sarif_builder::maybe_make_cwe_taxonomy_object ( ) const

private

If we've seen any CWE IDs, make a "toolComponent" object
(SARIF v2.1.0 section 3.19) representing the CWE taxonomy, as per 3.19.3.
Populate the "taxa" property with all of the CWE IDs in m_cwe_id_set.

Otherwise return nullptr.

References m_cwe_id_set, make_multiformat_message_string(), make_reporting_descriptor_object_for_cwe_id(), and json::object::set().

Referenced by maybe_make_taxonomies_array().

maybe_make_kinds_array()

std::unique_ptr< json::array > diagnostics::sarif_builder::maybe_make_kinds_array ( paths::event::meaning m ) const

private

If M has any known meaning, make a json array suitable for the "kinds"
property of a "threadFlowLocation" object (SARIF v2.1.0 section 3.38.8).

Otherwise, return nullptr.

References diagnostics::paths::event::meaning::m_noun, diagnostics::paths::event::meaning::m_property, and diagnostics::paths::event::meaning::m_verb.

Referenced by populate_thread_flow_location_object().

maybe_make_physical_location_object()

std::unique_ptr< sarif_physical_location > diagnostics::sarif_builder::maybe_make_physical_location_object ( location_t loc, enum diagnostic_artifact_role role, int column_override, const content_renderer * snippet_renderer )

private

Make a "physicalLocation" object (SARIF v2.1.0 section 3.29) for LOC.

If COLUMN_OVERRIDE is non-zero, then use it as the column number
if LOC has no column information.

Ensure that we have an artifact object for the file, adding ROLE to it,
and flagging that we will attempt to embed the contents of the artifact
when writing it out.

References BUILTINS_LOCATION, get_or_create_artifact(), LOCATION_FILE, make_artifact_location_object(), maybe_make_region_object(), maybe_make_region_object_for_context(), and json::object::set().

Referenced by make_location_object(), make_location_object(), and make_location_object().

maybe_make_region_object()

std::unique_ptr< sarif_region > diagnostics::sarif_builder::maybe_make_region_object ( location_t loc, int column_override ) const

private

Make a "region" object (SARIF v2.1.0 section 3.30) for LOC,
or return nullptr.

If COLUMN_OVERRIDE is non-zero, then use it as the column number
if LOC has no column information.

We only support text properties of regions ("text regions"),
not binary properties ("binary regions"); see 3.30.1.

References BUILTINS_LOCATION, expand_location(), get_finish(), get_pure_location(), get_sarif_column(), and get_start().

Referenced by make_location_object(), and maybe_make_physical_location_object().

maybe_make_region_object_for_context()

std::unique_ptr< sarif_region > diagnostics::sarif_builder::maybe_make_region_object_for_context ( location_t loc, const content_renderer * snippet_renderer ) const

private

Make a "region" object (SARIF v2.1.0 section 3.30) for the "contextRegion"
property (SARIF v2.1.0 section 3.29.5) of a "physicalLocation".

This is similar to maybe_make_region_object, but ignores column numbers,
covering the line(s) as a whole, and including a "snippet" property
embedding those source lines, making it easier for consumers to show
the pertinent source.

References BUILTINS_LOCATION, expand_location(), get_finish(), get_pure_location(), get_start(), and maybe_make_artifact_content_object().

Referenced by maybe_make_physical_location_object().

maybe_make_taxonomies_array()

std::unique_ptr< json::array > diagnostics::sarif_builder::maybe_make_taxonomies_array ( ) const

private

If we've seen any CWE IDs, make an array for the "taxonomies" property
(SARIF v2.1.0 section 3.14.8) of a run object, containing a single
"toolComponent" (3.19) as per 3.19.3, representing the CWE.

Otherwise return nullptr.

References maybe_make_cwe_taxonomy_object().

Referenced by make_run_object().

num_results()

size_t diagnostics::sarif_builder::num_results ( ) const

inline

References m_results_array.

on_report_diagnostic()

void diagnostics::sarif_builder::on_report_diagnostic	(	const diagnostic_info &	diagnostic,
		enum kind	orig_diag_kind,
		sarif_sink_buffer *	buffer )

Implementation of "on_report_diagnostic" for SARIF output.

References fnotice(), gcc_assert, m_context, m_cur_group_result, m_invocation_obj, m_next_result_idx, m_printer, make_result_object(), make_stack_from_backtrace(), pp_output_formatted_text(), and sarif_sink_buffer.

populate_thread_flow_location_object()

void diagnostics::sarif_builder::populate_thread_flow_location_object ( sarif_result & result, sarif_thread_flow_location & tfl_obj, const paths::event & ev, int event_execution_idx )

private

Populate TFL_OBJ, a "threadFlowLocation" object (SARIF v2.1.0 section 3.38)
based on EVENT.

References diagnostics::paths::event::get_meaning(), get_opts(), diagnostics::sarif_object::get_or_create_properties(), diagnostics::paths::event::get_stack_depth(), make_location_object(), diagnostics::paths::event::maybe_add_sarif_properties(), diagnostics::paths::event::maybe_make_diagnostic_state_graph(), maybe_make_kinds_array(), PROPERTY_PREFIX, json::object::set(), diagnostics::sarif_property_bag::set_graph(), json::object::set_integer(), and diagnostics::traced_file.

Referenced by make_code_flow_object().

report_global_digraph()

void diagnostics::sarif_builder::report_global_digraph

(

const lazily_created< digraphs::digraph > &

ldg

)

References lazily_created< T >::get_or_create(), m_run_graphs, and diagnostics::make_sarif_graph().

set_any_logical_locs_arr()

void diagnostics::sarif_builder::set_any_logical_locs_arr ( sarif_location & location_obj, logical_locations::key logical_loc )

private

If LOGICAL_LOC is non-null, use it to create a "logicalLocations" property
within LOCATION_OBJ (SARIF v2.1.0 section 3.28.4) with a minimal logical
location object referencing theRuns.logicalLocations (3.33.3).

References gcc_assert, m_logical_loc_mgr, make_minimal_sarif_logical_location(), and json::object::set().

Referenced by make_location_object(), and make_location_object().

set_main_input_filename()

void diagnostics::sarif_builder::set_main_input_filename

(

const char *

name

)

References diagnostics::analysis_target, and get_or_create_artifact().

set_printer()

void diagnostics::sarif_builder::set_printer ( pretty_printer & printer )

inline

References m_printer.

take_current_result()

std::unique_ptr< sarif_result > diagnostics::sarif_builder::take_current_result ( )

inline

References m_cur_group_result.

Friends And Related Symbol Documentation

sarif_sink_buffer

friend class sarif_sink_buffer

friend

References sarif_sink_buffer.

Referenced by on_report_diagnostic(), and sarif_sink_buffer.

Field Documentation

m_cached_logical_locs

std::unique_ptr<sarif_array_of_unique<sarif_logical_location> > diagnostics::sarif_builder::m_cached_logical_locs

private

Referenced by ensure_sarif_logical_location_for(), make_run_object(), and sarif_builder().

m_context

diagnostics::context& diagnostics::sarif_builder::m_context

private

Referenced by flush_to_file(), flush_to_object(), get_context(), get_or_create_artifact(), get_sarif_column(), get_source_lines(), make_driver_tool_component_object(), make_location_object(), make_locations_arr(), make_reporting_descriptor_object_for_warning(), make_result_object(), make_tool_object(), maybe_make_artifact_content_object(), on_report_diagnostic(), and sarif_builder().

m_cur_group_result

std::unique_ptr<sarif_result> diagnostics::sarif_builder::m_cur_group_result

private

Referenced by emit_diagram(), end_group(), on_report_diagnostic(), sarif_builder(), and take_current_result().

m_current_code_flow

sarif_code_flow* diagnostics::sarif_builder::m_current_code_flow

private

Referenced by get_code_flow_for_event_ids(), make_code_flow_object(), and sarif_builder().

m_cwe_id_set

hash_set<int_hash <int, 0, 1> > diagnostics::sarif_builder::m_cwe_id_set

private

Referenced by make_reporting_descriptor_reference_object_for_cwe_id(), and maybe_make_cwe_taxonomy_object().

m_filename_to_artifact_map

ordered_hash_map<nofree_string_hash, sarif_artifact *> diagnostics::sarif_builder::m_filename_to_artifact_map

private

Referenced by get_or_create_artifact(), make_run_object(), and ~sarif_builder().

m_invocation_obj

std::unique_ptr<sarif_invocation> diagnostics::sarif_builder::m_invocation_obj

private

Referenced by flush_to_object(), on_report_diagnostic(), and sarif_builder().

m_line_maps

const line_maps* diagnostics::sarif_builder::m_line_maps

private

Referenced by add_any_include_chain(), and sarif_builder().

m_logical_loc_mgr

const logical_locations::manager* diagnostics::sarif_builder::m_logical_loc_mgr

private

Referenced by ensure_sarif_logical_location_for(), get_logical_location_manager(), make_minimal_sarif_logical_location(), sarif_builder(), and set_any_logical_locs_arr().

m_next_result_idx

unsigned diagnostics::sarif_builder::m_next_result_idx

private

Referenced by on_report_diagnostic(), and sarif_builder().

m_printer

pretty_printer* diagnostics::sarif_builder::m_printer

private

Referenced by get_printer(), make_message_object_for_diagram(), make_result_object(), on_report_diagnostic(), sarif_builder(), and set_printer().

m_results_array

std::unique_ptr<json::array> diagnostics::sarif_builder::m_results_array

private

Referenced by end_group(), flush_to_object(), num_results(), and sarif_builder().

m_rule_id_set

hash_set<free_string_hash> diagnostics::sarif_builder::m_rule_id_set

private

Referenced by make_result_object(), and sarif_builder().

m_rules_arr

std::unique_ptr<json::array> diagnostics::sarif_builder::m_rules_arr

private

Referenced by make_driver_tool_component_object(), make_result_object(), and sarif_builder().

m_run_graphs

std::unique_ptr<sarif_array_of_unique<sarif_graph> > diagnostics::sarif_builder::m_run_graphs

private

Referenced by make_run_object(), report_global_digraph(), and sarif_builder().

m_sarif_gen_opts

const sarif_generation_options diagnostics::sarif_builder::m_sarif_gen_opts

private

Referenced by dump(), get_opts(), get_version(), and sarif_builder().

m_seen_any_relative_paths

bool diagnostics::sarif_builder::m_seen_any_relative_paths

private

Referenced by make_artifact_location_object(), make_run_object(), and sarif_builder().

m_serialization_format

std::unique_ptr<sarif_serialization_format> diagnostics::sarif_builder::m_serialization_format

private

Referenced by dump(), flush_to_file(), and sarif_builder().

m_tabstop

int diagnostics::sarif_builder::m_tabstop

private

Referenced by get_sarif_column(), and sarif_builder().

m_token_printer

sarif_token_printer diagnostics::sarif_builder::m_token_printer

private

Referenced by get_token_printer(), and sarif_builder().

---

The documentation for this class was generated from the following file:

• sarif-sink.cc
