diagnostics::sarif_result Class Reference

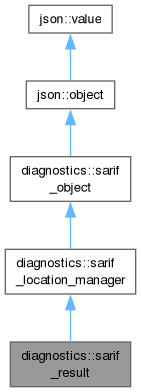

Inheritance diagram for diagnostics::sarif_result:

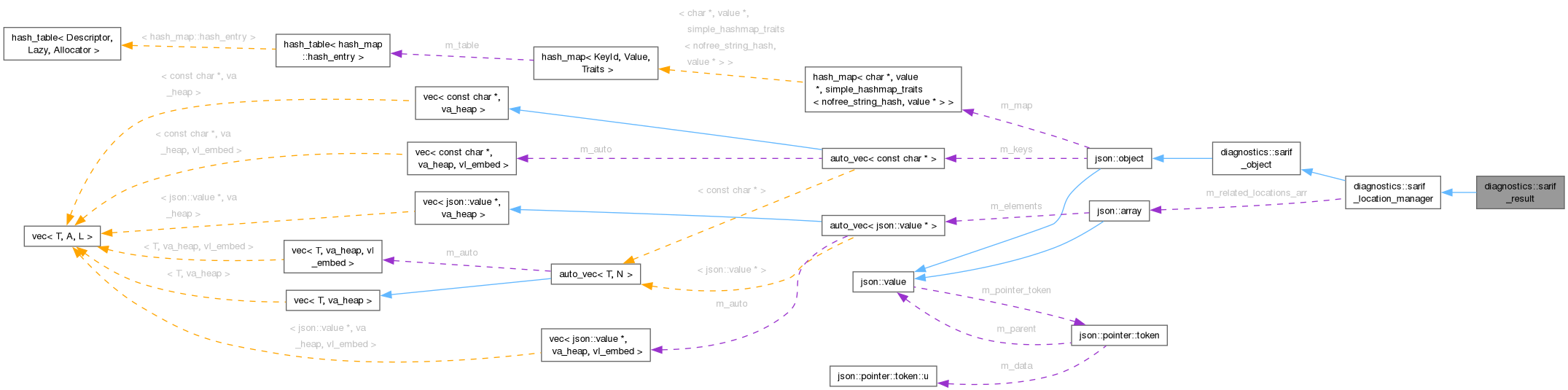

Collaboration diagram for diagnostics::sarif_result:

Public Member Functions
	sarif_result (unsigned idx_within_parent)
unsigned	get_index_within_parent () const
void	on_nested_diagnostic (const diagnostic_info &diagnostic, enum kind orig_diag_kind, sarif_builder &builder)
void	on_diagram (const diagram &d, sarif_builder &builder)
unsigned	allocate_location_id ()
virtual void	add_related_location (std::unique_ptr< sarif_location > location_obj, sarif_builder &builder)
void	add_relationship_to_worklist (sarif_location &location_obj, enum worklist_item::kind kind, location_t where)
void	process_worklist (sarif_builder &builder)
void	process_worklist_item (sarif_builder &builder, const worklist_item &item)
sarif_property_bag &	get_or_create_properties ()
enum kind	get_kind () const final override
void	print (pretty_printer *pp, bool formatted) const final override
std::unique_ptr< value >	clone () const final override
object *	dyn_cast_object () final override
bool	is_empty () const
void	set (const char *key, value *v)
template<typename JsonType>
void	set (const char *key, std::unique_ptr< JsonType > v)
value *	get (const char *key) const
void	set_string (const char *key, const char *utf8_value)
void	set_string (const string_property &property, const char *utf8_value)
void	set_integer (const char *key, long v)
void	set_integer (const integer_property &property, long value)
void	set_float (const char *key, double v)
void	set_bool (const char *key, bool v)
void	set_bool (const bool_property &property, bool value)
void	set_array_of_string (const array_of_string_property &property, std::unique_ptr< json::array > value)
template<typename EnumType>
bool	maybe_get_enum (const enum_property< EnumType > &property, EnumType &out) const
template<typename EnumType>
void	set_enum (const enum_property< EnumType > &property, EnumType value)
size_t	get_num_keys () const
const char *	get_key (size_t i) const
std::unique_ptr< object >	clone_as_object () const
void	dump (FILE *, bool formatted) const
void DEBUG_FUNCTION	dump () const
virtual array *	dyn_cast_array ()
virtual integer_number *	dyn_cast_integer_number ()
virtual string *	dyn_cast_string ()
const pointer::token &	get_pointer_token () const

Static Public Member Functions
static int	compare (const json::object &obj_a, const json::object &obj_b)
static int	compare (const json::value &val_a, const json::value &val_b)

Data Fields
pointer::token	m_pointer_token

Private Types
typedef hash_map< char *, value *, simple_hashmap_traits< nofree_string_hash, value * > >	map_t

Private Attributes
const unsigned	m_idx_within_parent
json::array *	m_related_locations_arr
unsigned	m_next_location_id
std::list< worklist_item >	m_worklist
std::map< location_t, sarif_location * >	m_included_from_locations
std::map< location_t, sarif_location * >	m_unlabelled_secondary_locations
map_t	m_map
auto_vec< const char * >	m_keys

Detailed Description

Subclass of sarif_object for SARIF "result" objects
(SARIF v2.1.0 section 3.27).
Each SARIF result object has its own "namespace" of numeric IDs for
managing location objects (SARIF v2.1.0 section 3.28.2).

Member Typedef Documentation

map_t

typedef hash_map<char *, value *, simple_hashmap_traits<nofree_string_hash, value *> > json::object::map_t

privateinherited

Constructor & Destructor Documentation

sarif_result()

diagnostics::sarif_result::sarif_result ( unsigned idx_within_parent )

inline

References m_idx_within_parent.

Member Function Documentation

add_related_location()

void diagnostics::sarif_location_manager::add_related_location ( std::unique_ptr< sarif_location > location_obj, sarif_builder & builder )

virtualinherited

class sarif_location_manager : public sarif_object.

Base implementation of sarif_location_manager::add_related_location vfunc.

Add LOCATION_OBJ to this object's "relatedLocations" array,
creating it if it doesn't yet exist.

Reimplemented in diagnostics::sarif_ice_notification.

References m_related_locations_arr, and json::object::set().

Referenced by diagnostics::sarif_ice_notification::add_related_location(), diagnostics::sarif_result::on_diagram(), diagnostics::sarif_result::on_nested_diagnostic(), and process_worklist_item().

add_relationship_to_worklist()

void diagnostics::sarif_location_manager::add_relationship_to_worklist ( sarif_location & location_obj, enum worklist_item::kind kind, location_t where )

inherited

References m_worklist.

Referenced by diagnostics::sarif_builder::add_any_include_chain(), and diagnostics::sarif_builder::make_location_object().

allocate_location_id()

unsigned diagnostics::sarif_location_manager::allocate_location_id ( )

inlineinherited

References m_next_location_id.

Referenced by diagnostics::sarif_location::lazily_add_id().

clone()

std::unique_ptr< value > object::clone ( ) const

finaloverridevirtualinherited

Implements json::value.

References clone_as_object().

clone_as_object()

std::unique_ptr< object > object::clone_as_object ( ) const

inherited

References json::value::clone(), FOR_EACH_VEC_ELT, hash_map< KeyId, Value, Traits >::get(), i, m_keys, and m_map.

Referenced by clone().

compare() [1/2]

int object::compare ( const json::object & obj_a, const json::object & obj_b )

staticinherited

Subroutine of json::compare for comparing a pairs of objects.

References json::value::compare(), gcc_assert, get(), m_keys, and m_map.

Referenced by json::value::compare().

compare() [2/2]

int value::compare ( const json::value & val_a, const json::value & val_b )

staticinherited

A deterministic total ordering for comparing json values, so that we
can e.g. put them in std::map.

This is intended to follow the condition for equality described in
the JSON Schema standard (§4.3, “Instance equality”), as referenced
by SARIF v2.1.0 (§3.7.3 "Array properties with unique values"), but has
the following limitations:
- numbers are supposed to be checked for "the same mathematical value",
but in this implementation int vs float numbers won't compare as equal,
and float number comparison is bitwise
- strings are supposed to be "the same codepoint-for-codepoint", but
this implementation doesn't take into account canonicalization issues.

References json::object::compare(), compare(), gcc_unreachable, json::float_number::get(), json::integer_number::get(), get_kind(), json::string::get_string(), json::JSON_ARRAY, json::JSON_FALSE, json::JSON_FLOAT, json::JSON_INTEGER, json::JSON_NULL, json::JSON_OBJECT, json::JSON_STRING, json::JSON_TRUE, and json::array::size().

Referenced by json::object::compare(), compare(), and diagnostics::sarif_array_of_unique< JsonElementType >::comparator_t::operator()().

dump() [1/2]

void value::dump ( ) const

inherited

A convenience function for debugging.
Dump to stderr with formatting, and a trailing newline.

References dump().

dump() [2/2]

void value::dump ( FILE * outf, bool formatted ) const

inherited

class json::value.

Dump this json::value tree to OUTF.

The key/value pairs of json::objects are printed in the order
in which the keys were originally inserted.

References output_buffer::m_stream, pp_buffer(), pp_flush(), and print().

Referenced by dump(), generate_results(), and diagnostics::sarif_serialization_format_json::write_to_file().

dyn_cast_array()

virtual array * json::value::dyn_cast_array ( )

inlinevirtualinherited

Reimplemented in json::array.

dyn_cast_integer_number()

virtual integer_number * json::value::dyn_cast_integer_number ( )

inlinevirtualinherited

Reimplemented in json::integer_number.

dyn_cast_object()

object * json::object::dyn_cast_object ( )

inlinefinaloverridevirtualinherited

Reimplemented from json::value.

References dyn_cast_object(), and final().

Referenced by dyn_cast_object().

dyn_cast_string()

virtual string * json::value::dyn_cast_string ( )

inlinevirtualinherited

Reimplemented in json::string.

get()

value * object::get ( const char * key ) const

inherited

Get the json::value * for KEY.

The object retains ownership of the value.

References gcc_assert, get(), m_map, and NULL.

Referenced by compare(), diagnostics::copy_any_property_bag(), get(), diagnostics::sarif_location::get_id(), diagnostics::sarif_code_flow::get_or_append_thread_flow(), diagnostics::sarif_object::get_or_create_properties(), diagnostics::sarif_location_relationship::get_target_id(), diagnostics::sarif_location_relationship::lazily_add_kind(), diagnostics::sarif_location::lazily_add_relationship_object(), diagnostics::sarif_location::lazily_add_relationships_array(), diagnostics::sarif_builder::make_location_object(), diagnostics::sarif_builder::make_location_object(), diagnostics::sarif_builder::make_location_object(), maybe_get_enum(), and diagnostics::sarif_location_manager::process_worklist_item().

get_index_within_parent()

unsigned diagnostics::sarif_result::get_index_within_parent ( ) const

inline

References m_idx_within_parent.

Referenced by diagnostics::make_sarif_url_for_event().

get_key()

const char * json::object::get_key ( size_t i ) const

inlineinherited

References i, and m_keys.

Referenced by diagnostics::copy_any_property_bag().

get_kind()

enum kind json::object::get_kind ( ) const

inlinefinaloverridevirtualinherited

Implements json::value.

References final(), and json::JSON_OBJECT.

get_num_keys()

size_t json::object::get_num_keys ( ) const

inlineinherited

References m_keys.

Referenced by diagnostics::copy_any_property_bag().

get_or_create_properties()

sarif_property_bag & diagnostics::sarif_object::get_or_create_properties ( )

inherited

class sarif_object : public json::object.

References json::object::get(), json::value::get_kind(), json::JSON_OBJECT, and json::object::set().

Referenced by diagnostics::copy_any_property_bag(), diagnostics::sarif_builder::populate_thread_flow_location_object(), and diagnostics::sarif_ice_notification::sarif_ice_notification().

get_pointer_token()

const pointer::token & json::value::get_pointer_token ( ) const

inlineinherited

References m_pointer_token.

is_empty()

bool json::object::is_empty ( ) const

inlineinherited

References m_map.

maybe_get_enum()

template<typename EnumType>

bool json::object::maybe_get_enum ( const enum_property< EnumType > & property, EnumType & out ) const

inlineinherited

References get(), if(), json::property< Traits >::m_key, and maybe_get_enum().

Referenced by maybe_get_enum().

on_diagram()

void diagnostics::sarif_result::on_diagram	(	const diagram &	d,
		sarif_builder &	builder )

Handle diagrams that occur within a diagnostic group.
The closest thing in SARIF seems to be to add a location to the
"releatedLocations" property  (SARIF v2.1.0 section 3.27.22),
and to put the diagram into the "message" property of that location
(SARIF v2.1.0 section 3.28.5).

References diagnostics::sarif_location_manager::add_related_location(), and diagnostics::sarif_builder::make_message_object_for_diagram().

on_nested_diagnostic()

void diagnostics::sarif_result::on_nested_diagnostic	(	const diagnostic_info &	diagnostic,
		enum kind	orig_diag_kind,
		sarif_builder &	builder )

class sarif_result : public sarif_location_manager.

Handle secondary diagnostics that occur within a diagnostic group.
The closest SARIF seems to have to nested diagnostics is the
"relatedLocations" property of result objects (SARIF v2.1.0 section 3.27.22),
so we lazily set this property and populate the array if and when
secondary diagnostics occur (such as notes to a warning).

References diagnostics::sarif_location_manager::add_related_location(), diagnostics::sarif_builder::get_context(), diagnostics::context::get_diagnostic_nesting_level(), diagnostics::sarif_builder::get_printer(), diagnostics::sarif_builder::make_location_object(), diagnostics::sarif_builder::make_message_object(), pp_clear_output_area(), pp_formatted_text(), diagnostics::result_file, and json::object::set_integer().

print()

void object::print ( pretty_printer * pp, bool formatted ) const

finaloverridevirtualinherited

Implementation of json::value::print for json::object.

Implements json::value.

References FOR_EACH_VEC_ELT, hash_map< KeyId, Value, Traits >::get(), i, m_keys, m_map, pp_character(), pp_indent(), pp_indentation(), pp_newline(), pp_space, pp_string(), json::value::print(), and print_escaped_json_string().

Referenced by generate_results().

process_worklist()

void diagnostics::sarif_location_manager::process_worklist ( sarif_builder & builder )

inherited

Process all items in this result's worklist.
Doing so may temporarily add new items to the end
of the worklist.
Handling any item should be "lazy", and thus we should
eventually drain the queue and terminate.

References m_worklist, and process_worklist_item().

process_worklist_item()

void diagnostics::sarif_location_manager::process_worklist_item ( sarif_builder & builder, const worklist_item & item )

inherited

Process one item in this result's worklist, potentially
adding new items to the end of the worklist.

References add_related_location(), gcc_assert, gcc_unreachable, json::object::get(), diagnostics::sarif_location_manager::worklist_item::included_from, diagnostics::includes, diagnostics::is_included_by, diagnostics::sarif_location::lazily_add_relationship(), m_included_from_locations, diagnostics::sarif_location_manager::worklist_item::m_kind, diagnostics::sarif_location_manager::worklist_item::m_location_obj, m_unlabelled_secondary_locations, diagnostics::sarif_location_manager::worklist_item::m_where, diagnostics::sarif_builder::make_location_object(), diagnostics::relevant, diagnostics::scanned_file, and diagnostics::sarif_location_manager::worklist_item::unlabelled_secondary_location.

Referenced by process_worklist().

set() [1/2]

template<typename JsonType>

void json::object::set ( const char * key, std::unique_ptr< JsonType > v )

inlineinherited

References set().

set() [2/2]

void object::set ( const char * key, value * v )

inherited

Set the json::value * for KEY, taking ownership of V
(and taking a copy of KEY if necessary).

References gcc_assert, m_keys, m_map, and json::value::m_pointer_token.

Referenced by optrecord_json_writer::add_pass_list(), optrecord_json_writer::add_record(), diagnostics::sarif_location_manager::add_related_location(), diagnostics::copy_any_property_bag(), generate_results(), diagnostics::sarif_builder::get_or_create_artifact(), diagnostics::sarif_object::get_or_create_properties(), optrecord_json_writer::inlining_chain_to_json(), json_set_prime_path_coverage(), diagnostics::sarif_location_relationship::lazily_add_kind(), diagnostics::sarif_location::lazily_add_relationships_array(), diagnostics::sarif_builder::make_fix_object(), diagnostics::sarif_builder::make_replacement_object(), diagnostics::sarif_builder::make_result_object(), diagnostics::sarif_builder::make_run_object(), diagnostics::sarif_builder::make_tool_object(), diagnostics::sarif_builder::make_top_level_object(), diagnostics::sarif_builder::maybe_make_cwe_taxonomy_object(), diagnostics::sarif_builder::maybe_make_physical_location_object(), optrecord_json_writer::optinfo_to_json(), optrecord_json_writer::optrecord_json_writer(), output_intermediate_json_line(), output_json_intermediate_file(), optrecord_json_writer::pass_to_json(), diagnostics::sarif_artifact::populate_contents(), diagnostics::sarif_artifact::populate_roles(), diagnostics::sarif_builder::populate_thread_flow_location_object(), diagnostics::sarif_invocation::prepare_to_flush(), diagnostics::sarif_code_flow::sarif_code_flow(), diagnostics::sarif_ice_notification::sarif_ice_notification(), diagnostics::sarif_invocation::sarif_invocation(), diagnostics::sarif_thread_flow::sarif_thread_flow(), set(), diagnostics::sarif_builder::set_any_logical_locs_arr(), set_array_of_string(), set_bool(), set_float(), diagnostics::sarif_property_bag::set_graph(), set_integer(), diagnostics::sarif_property_bag::set_logical_location(), and set_string().

set_array_of_string()

void object::set_array_of_string ( const array_of_string_property & property, std::unique_ptr< json::array > value )

inherited

References json::property< Traits >::m_key, and set().

set_bool() [1/2]

void object::set_bool ( const bool_property & property, bool value )

inherited

References json::property< Traits >::m_key, and set_bool().

set_bool() [2/2]

void object::set_bool ( const char * key, bool v )

inherited

Set value of KEY within this object to the JSON
literal true or false, based on V.

References set().

Referenced by diagnostics::sarif_builder::make_location_object(), output_intermediate_json_line(), diagnostics::sarif_invocation::prepare_to_flush(), and set_bool().

set_enum()

template<typename EnumType>

void json::object::set_enum ( const enum_property< EnumType > & property, EnumType value )

inlineinherited

References json::enum_traits< EnumType >::get_string_for_value(), json::property< Traits >::m_key, and set_string().

set_float()

void object::set_float ( const char * key, double v )

inherited

Set value of KEY within this object to a JSON
floating point value based on V.

References set().

set_integer() [1/2]

void object::set_integer ( const char * key, long v )

inherited

Set value of KEY within this object to a JSON
integer value based on V.

References set().

Referenced by optrecord_json_writer::impl_location_to_json(), json_set_prime_path_coverage(), diagnostics::sarif_location::lazily_add_id(), optrecord_json_writer::location_to_json(), diagnostics::sarif_result::on_nested_diagnostic(), output_intermediate_json_line(), optrecord_json_writer::pass_to_json(), diagnostics::sarif_builder::populate_thread_flow_location_object(), optrecord_json_writer::profile_count_to_json(), diagnostics::sarif_location_relationship::sarif_location_relationship(), and set_integer().

set_integer() [2/2]

void object::set_integer ( const integer_property & property, long value )

inherited

References json::property< Traits >::m_key, and set_integer().

set_string() [1/2]

void object::set_string ( const char * key, const char * utf8_value )

inherited

Set value of KEY within this object to a JSON
string value based on UTF8_VALUE.

References set().

Referenced by generate_results(), diagnostics::sarif_builder::get_or_create_artifact(), optrecord_json_writer::impl_location_to_json(), optrecord_json_writer::inlining_chain_to_json(), json_set_prime_path_coverage(), optrecord_json_writer::location_to_json(), optrecord_json_writer::optinfo_to_json(), optrecord_json_writer::optrecord_json_writer(), output_intermediate_json_line(), output_json_intermediate_file(), optrecord_json_writer::pass_to_json(), optrecord_json_writer::profile_count_to_json(), diagnostics::sarif_ice_notification::sarif_ice_notification(), diagnostics::sarif_thread_flow::sarif_thread_flow(), set_enum(), set_string(), and diagnostics::set_string_property_escaping_braces().

set_string() [2/2]

void object::set_string ( const string_property & property, const char * utf8_value )

inherited

References json::property< Traits >::m_key, and set_string().

Field Documentation

m_idx_within_parent

const unsigned diagnostics::sarif_result::m_idx_within_parent

private

Referenced by get_index_within_parent(), and sarif_result().

m_included_from_locations

std::map<location_t, sarif_location *> diagnostics::sarif_location_manager::m_included_from_locations

privateinherited

Referenced by process_worklist_item().

m_keys

auto_vec<const char *> json::object::m_keys

privateinherited

Referenced by clone_as_object(), compare(), get_key(), get_num_keys(), print(), and set().

m_map

map_t json::object::m_map

privateinherited

Referenced by clone_as_object(), compare(), get(), is_empty(), print(), set(), and ~object().

m_next_location_id

unsigned diagnostics::sarif_location_manager::m_next_location_id

privateinherited

Referenced by allocate_location_id(), and sarif_location_manager().

m_pointer_token

pointer::token json::value::m_pointer_token

inherited

Referenced by json::array::append(), get_pointer_token(), and json::object::set().

m_related_locations_arr

json::array* diagnostics::sarif_location_manager::m_related_locations_arr

privateinherited

Referenced by add_related_location(), and sarif_location_manager().

m_unlabelled_secondary_locations

std::map<location_t, sarif_location *> diagnostics::sarif_location_manager::m_unlabelled_secondary_locations

privateinherited

Referenced by process_worklist_item().

m_worklist

std::list<worklist_item> diagnostics::sarif_location_manager::m_worklist

privateinherited

Referenced by add_relationship_to_worklist(), and process_worklist().

---

The documentation for this class was generated from the following file:

• sarif-sink.cc
