#include <text-sink.h>

Inheritance diagram for diagnostics::text_sink:

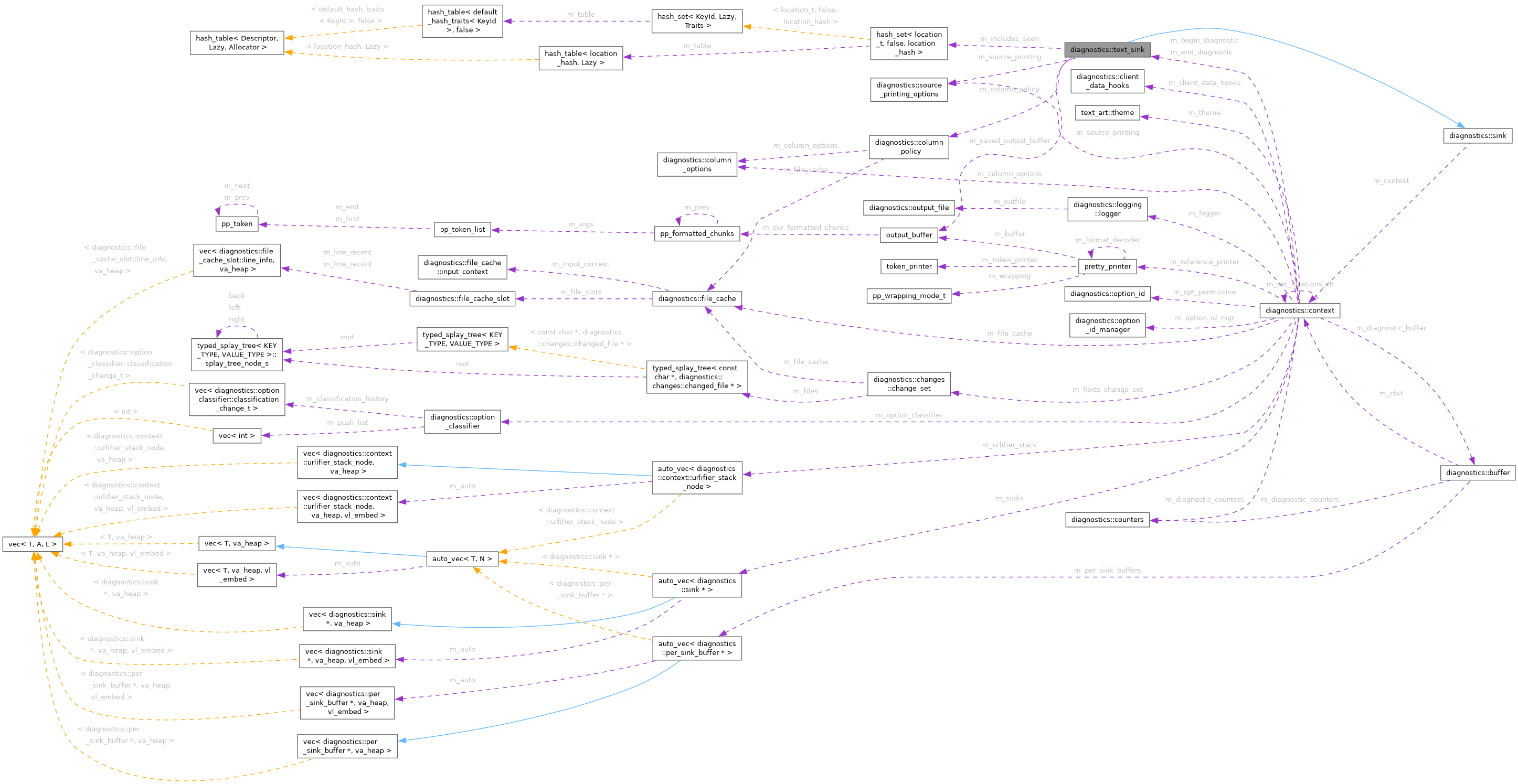

Collaboration diagram for diagnostics::text_sink:

[legend]

Public Member Functions
	text_sink (context &dc, source_printing_options *source_printing=nullptr, bool follows_reference_printer=false)
	~text_sink ()
text_sink *	dyn_cast_text_sink () final override
void	dump_kind (FILE *out) const override
void	dump (FILE *out, int indent) const override
std::unique_ptr< per_sink_buffer >	make_per_sink_buffer () final override
void	set_buffer (per_sink_buffer *) final override
void	on_begin_group () override
void	on_end_group () override
void	on_report_diagnostic (const diagnostic_info &, enum kind orig_diag_kind) override
void	on_report_verbatim (text_info &) final override
void	on_diagram (const diagram &d) override
void	after_diagnostic (const diagnostic_info &) override
bool	machine_readable_stderr_p () const final override
bool	follows_reference_printer_p () const final override
void	update_printer () override
void	report_global_digraph (const lazily_created< digraphs::digraph > &) final override
char *	build_prefix (const diagnostic_info &) const
void	report_current_module (location_t where)
void	append_note (location_t location, const char *gmsgid,...) ATTRIBUTE_GCC_DIAG(3
void char *	file_name_as_prefix (const char *) const
char *	build_indent_prefix (bool with_bullet) const
void	print_path (const paths::path &path)
bool	show_column_p () const
const column_policy &	get_column_policy () const
location_print_policy	get_location_print_policy () const
bool	show_nesting_p () const
bool	show_locations_in_nesting_p () const
void	set_show_nesting (bool show_nesting)
void	set_show_locations_in_nesting (bool val)
void	set_show_nesting_levels (bool show_nesting_levels)
label_text	get_location_text (const expanded_location &s) const
source_printing_options &	get_source_printing_options ()
const source_printing_options &	get_source_printing_options () const
void DEBUG_FUNCTION	dump () const
virtual void	set_main_input_filename (const char *)
context &	get_context () const
pretty_printer *	get_printer () const
text_art::theme *	get_diagram_theme () const
logging::logger *	get_logger ()

Static Public Member Functions
static const char *	maybe_line_and_column (int line, int col)

Protected Member Functions
void	print_any_cwe (const diagnostic_info &diagnostic)
void	print_any_rules (const diagnostic_info &diagnostic)
void	print_option_information (const diagnostic_info &diagnostic, enum kind orig_diag_kind)
bool	includes_seen_p (const line_map_ordinary *map)

Protected Attributes
output_buffer *	m_saved_output_buffer
column_policy	m_column_policy
const line_map_ordinary *	m_last_module
hash_set< location_t, false, location_hash > *	m_includes_seen
source_printing_options &	m_source_printing
bool	m_follows_reference_printer
bool	m_show_nesting
bool	m_show_locations_in_nesting
bool	m_show_nesting_levels
context &	m_context
std::unique_ptr< pretty_printer >	m_printer

Detailed Description

Subclass of diagnostics::sink for classic text-based output
to stderr.

Uses diagnostics::context.m_text_callbacks to provide client-specific
textual output (e.g. include paths, macro expansions, etc).

Constructor & Destructor Documentation

◆ text_sink()

diagnostics::text_sink::text_sink	(	context &	dc,
		source_printing_options *	source_printing = nullptr,
		bool	follows_reference_printer = false )

inline

References false, get_source_printing_options(), m_column_policy, m_follows_reference_printer, m_includes_seen, m_last_module, m_saved_output_buffer, m_show_nesting, m_show_nesting_levels, m_source_printing, and diagnostics::sink::sink().

Referenced by dyn_cast_text_sink().

◆ ~text_sink()

diagnostics::text_sink::~text_sink ( )

class diagnostics::text_sink : public diagnostics::sink.

References _, diagnostics::get_printer(), diagnostics::sink::m_context, m_includes_seen, pp_newline_and_flush(), pp_verbatim(), and progname.

Member Function Documentation

◆ after_diagnostic()

void diagnostics::text_sink::after_diagnostic ( const diagnostic_info & diagnostic )

overridevirtual

Implements diagnostics::sink.

References path, and print_path().

◆ append_note()

void diagnostics::text_sink::append_note	(	location_t	location,
		const char *	gmsgid,
			... )

Add a purely textual note with text GMSGID and with LOCATION.

References ap, build_prefix(), diagnostic_set_info(), diagnostic_show_locus(), diagnostics::sink::get_context(), diagnostics::get_printer(), get_source_printing_options(), line_table, diagnostics::context::m_inhibit_notes_p, pp_destroy_prefix(), pp_format(), pp_newline(), pp_output_formatted_text(), pp_set_prefix(), and pp_take_prefix().

Referenced by diagnostics::maybe_unwind_expanded_macro_loc().

◆ build_indent_prefix()

char * diagnostics::text_sink::build_indent_prefix ( bool with_bullet ) const

Return a malloc'd string for use as a prefix to show indentation.
If m_show_nesting is false, or we're at the top-level, then the
result will be the empty string.

If m_show_nesting, then the result will contain indentation to show
the nesting level, then either a bullet point (if WITH_BULLET is true),
or a space.

The caller is responsible for freeing the memory.

References diagnostics::get_bullet_point_unichar(), diagnostics::sink::get_context(), i, m_show_nesting, m_show_nesting_levels, pp_formatted_text(), pp_printf(), pp_space, pp_string(), and pp_unicode_character().

Referenced by build_prefix(), and on_report_diagnostic().

◆ build_prefix()

char * diagnostics::text_sink::build_prefix ( const diagnostic_info & diagnostic ) const

Return a malloc'd string describing a location and the severity of the
diagnostic, e.g. "foo.c:42:10: error: ".

If m_show_nesting, then the above will be preceded by indentation to show
the level, and a bullet point.

The caller is responsible for freeing the memory.

References _, build_indent_prefix(), build_message_string(), colorize_start(), colorize_stop(), diagnostic_expand_location(), free(), gcc_assert, diagnostics::get_color_for_kind(), diagnostics::sink::get_context(), get_location_text(), diagnostics::get_printer(), diagnostics::get_text_for_kind(), diagnostics::last_diagnostic_kind, m_show_nesting, and pp_show_color().

Referenced by append_note(), diagnostics::default_text_starter(), default_tree_diagnostic_text_starter(), and diagnostic_text_sink::text_starter().

◆ dump() [1/2]

void DEBUG_FUNCTION diagnostics::sink::dump ( ) const

inlineinherited

References DEBUG_FUNCTION, and dump().

Referenced by diagnostics::html_sink::dump(), diagnostics::sarif_sink::dump(), dump(), and diagnostics::text_sink::dump().

◆ dump() [2/2]

void diagnostics::text_sink::dump	(	FILE *	out,
		int	indent ) const

overridevirtual

Reimplemented from diagnostics::sink.

References DIAGNOSTICS_DUMPING_EMIT_BOOL_FIELD, diagnostics::sink::dump(), diagnostics::dumping::emit_heading(), diagnostics::dumping::emit_none(), m_follows_reference_printer, m_saved_output_buffer, m_show_locations_in_nesting, m_show_nesting, and m_show_nesting_levels.

◆ dump_kind()

void diagnostics::text_sink::dump_kind ( FILE * out ) const

inlineoverridevirtual

Implements diagnostics::sink.

◆ dyn_cast_text_sink()

text_sink * diagnostics::text_sink::dyn_cast_text_sink ( )

inlinefinaloverridevirtual

Reimplemented from diagnostics::sink.

References final(), and text_sink().

◆ file_name_as_prefix()

char * diagnostics::text_sink::file_name_as_prefix ( const char * f ) const

Same as build_prefix, but only the source FILE is given.

References build_message_string(), colorize_start(), colorize_stop(), diagnostics::get_printer(), and pp_show_color().

Referenced by lhd_print_error_function().

◆ follows_reference_printer_p()

bool diagnostics::text_sink::follows_reference_printer_p ( ) const

finaloverridevirtual

Implements diagnostics::sink.

References m_follows_reference_printer.

◆ get_column_policy()

const column_policy & diagnostics::text_sink::get_column_policy ( ) const

inline

References m_column_policy.

Referenced by report_current_module().

◆ get_context()

context & diagnostics::sink::get_context ( ) const

inlineinherited

References m_context.

Referenced by diagnostics::text_sink::append_note(), diagnostics::text_sink::build_indent_prefix(), diagnostics::text_sink::build_prefix(), diagnostics::default_text_finalizer(), diagnostics::text_sink::get_location_text(), lhd_print_error_function(), diagnostics::text_sink::on_report_diagnostic(), diagnostics::text_sink::print_path(), diagnostics::text_sink::show_column_p(), and diagnostics::text_sink::update_printer().

◆ get_diagram_theme()

text_art::theme * diagnostics::sink::get_diagram_theme ( ) const

inlineinherited

References m_context.

◆ get_location_print_policy()

location_print_policy diagnostics::text_sink::get_location_print_policy ( ) const

◆ get_location_text()

label_text diagnostics::text_sink::get_location_text ( const expanded_location & s ) const

References diagnostics::sink::get_context(), diagnostics::column_policy::get_location_text(), diagnostics::sink::get_printer(), pp_show_color(), and show_column_p().

Referenced by build_prefix(), diagnostic_manager_debug_dump_location(), and on_report_diagnostic().

◆ get_logger()

logging::logger * diagnostics::sink::get_logger ( )

inlineinherited

References m_context.

Referenced by diagnostics::html_sink::on_report_diagnostic(), diagnostics::sarif_sink::on_report_diagnostic(), and diagnostics::text_sink::on_report_diagnostic().

◆ get_printer()

pretty_printer * diagnostics::sink::get_printer ( ) const

inlineinherited

References m_printer.

Referenced by diagnostics::default_text_finalizer(), diagnostics::default_text_starter(), default_tree_diagnostic_text_starter(), diagnostics::text_sink::get_location_text(), diagnostics::html_sink::html_sink(), lhd_print_error_function(), diagnostics::sarif_builder::make_location_object(), diagnostics::text_sink::on_report_verbatim(), diagnostics::sarif_sink::sarif_sink(), diagnostic_text_sink::text_starter(), diagnostics::html_sink::update_printer(), and diagnostics::sarif_sink::update_printer().

◆ get_source_printing_options() [1/2]

source_printing_options & diagnostics::text_sink::get_source_printing_options ( )

inline

References m_source_printing.

Referenced by append_note(), diagnostics::default_text_finalizer(), and text_sink().

◆ get_source_printing_options() [2/2]

const source_printing_options & diagnostics::text_sink::get_source_printing_options ( ) const

inline

References m_source_printing.

◆ includes_seen_p()

bool diagnostics::text_sink::includes_seen_p ( const line_map_ordinary * map )

protected

Only dump the "In file included from..." stack once for each file.

References line_table, m_includes_seen, and map.

Referenced by report_current_module().

◆ machine_readable_stderr_p()

bool diagnostics::text_sink::machine_readable_stderr_p ( ) const

inlinefinaloverridevirtual

Implements diagnostics::sink.

References final().

◆ make_per_sink_buffer()

std::unique_ptr< per_sink_buffer > diagnostics::text_sink::make_per_sink_buffer ( )

finaloverridevirtual

Implements diagnostics::sink.

◆ maybe_line_and_column()

const char * diagnostics::text_sink::maybe_line_and_column	(	int	line,
		int	col )

static

Helpers for writing lang-specific starters/finalizers for text output.

Return a formatted line and column ':%line:%column'.  Elided if
line == 0 or col < 0.  (A column of 0 may be valid due to the
-fdiagnostics-column-origin option.)
The result is a statically allocated buffer.

References gcc_checking_assert.

Referenced by diagnostics::column_policy::get_location_text(), and report_current_module().

◆ on_begin_group()

void diagnostics::text_sink::on_begin_group ( )

inlineoverridevirtual

Implements diagnostics::sink.

References on_begin_group().

Referenced by on_begin_group().

◆ on_diagram()

void diagnostics::text_sink::on_diagram ( const diagram & d )

overridevirtual

Implements diagnostics::sink.

References diagnostics::diagram::get_canvas(), diagnostics::get_printer(), pp_flush(), pp_newline(), pp_set_prefix(), pp_take_prefix(), and text_art::canvas::print_to_pp().

◆ on_end_group()

void diagnostics::text_sink::on_end_group ( )

inlineoverridevirtual

Implements diagnostics::sink.

◆ on_report_diagnostic()

void diagnostics::text_sink::on_report_diagnostic	(	const diagnostic_info &	diagnostic,
		enum kind	orig_diag_kind )

overridevirtual

Implementation of diagnostics::sink::on_report_diagnostic vfunc
for GCC's standard textual output.

Implements diagnostics::sink.

References build_indent_prefix(), BUILTINS_LOCATION, diagnostic_expand_location(), diagnostic_location(), DIAGNOSTICS_LOG_SCOPE_PRINTF0, diagnostics::sink::get_context(), get_location_text(), diagnostics::sink::get_logger(), diagnostics::get_printer(), diagnostics::sink::m_context, m_show_locations_in_nesting, m_show_nesting, pp_newline(), pp_output_formatted_text(), pp_printf(), pp_set_prefix(), print_any_cwe(), print_any_rules(), print_option_information(), diagnostics::text_finalizer(), and diagnostics::text_starter().

◆ on_report_verbatim()

void diagnostics::text_sink::on_report_verbatim ( text_info & text )

finaloverridevirtual

Reimplemented from diagnostics::sink.

References diagnostics::sink::get_printer(), pp_format_verbatim(), and pp_newline_and_flush().

◆ print_any_cwe()

void diagnostics::text_sink::print_any_cwe ( const diagnostic_info & diagnostic )

protected

If DIAGNOSTIC has a CWE identifier, print it.

For example, if the diagnostic metadata associates it with CWE-119,
" [CWE-119]" will be printed, suitably colorized, and with a URL of a
description of the security issue.

References colorize_start(), colorize_stop(), free(), diagnostics::get_color_for_kind(), diagnostics::metadata::get_cwe(), diagnostics::get_cwe_url(), diagnostics::get_printer(), diagnostic::m_metadata, pp_begin_url(), pp_character(), pp_end_url(), pp_printf(), pp_set_prefix(), pp_show_color(), pp_string(), pp_take_prefix(), and pretty_printer::supports_urls_p().

Referenced by on_report_diagnostic().

◆ print_any_rules()

void diagnostics::text_sink::print_any_rules ( const diagnostic_info & diagnostic )

protected

If DIAGNOSTIC has any rules associated with it, print them.

For example, if the diagnostic metadata associates it with a rule
named "STR34-C", then " [STR34-C]" will be printed, suitably colorized,
with any URL provided by the rule.

References colorize_start(), colorize_stop(), free(), diagnostics::get_color_for_kind(), diagnostics::metadata::get_num_rules(), diagnostics::get_printer(), diagnostics::metadata::get_rule(), diagnostic::m_metadata, diagnostics::metadata::rule::make_description(), diagnostics::metadata::rule::make_url(), pp_begin_url(), pp_character(), pp_end_url(), pp_set_prefix(), pp_show_color(), pp_string(), pp_take_prefix(), and pretty_printer::supports_urls_p().

Referenced by on_report_diagnostic().

◆ print_option_information()

void diagnostics::text_sink::print_option_information	(	const diagnostic_info &	diagnostic,
		enum kind	orig_diag_kind )

protected

Print any metadata about the option used to control DIAGNOSTIC to
the context's printer, e.g. " [-Werror=uninitialized]".

References colorize_start(), colorize_stop(), free(), diagnostics::get_color_for_kind(), diagnostics::get_printer(), diagnostics::sink::m_context, pp_begin_url(), pp_character(), pp_end_url(), pp_show_color(), pp_string(), and pretty_printer::supports_urls_p().

Referenced by on_report_diagnostic().

◆ print_path()

void diagnostics::text_sink::print_path ( const paths::path & path )

Print PATH according to the context's path_format.

References DPF_INLINE_EVENTS, DPF_NONE, DPF_SEPARATE_EVENTS, diagnostics::sink::get_context(), diagnostics::paths::path::get_event(), diagnostics::paths::path::get_logical_location_manager(), diagnostics::get_printer(), i, inform(), m_source_printing, diagnostics::paths::path::num_events(), pp_flush(), pp_set_prefix(), pp_show_color(), and pp_take_prefix().

◆ report_current_module()

void diagnostics::text_sink::report_current_module ( location_t where )

References _, BUILTINS_LOCATION, get_column_policy(), diagnostics::get_printer(), includes_seen_p(), line_table, m_last_module, map, maybe_line_and_column(), N_, pp_needs_newline(), pp_newline(), pp_verbatim(), and show_column_p().

Referenced by diagnostics::default_text_starter(), and diagnostic_report_current_function().

◆ report_global_digraph()

void diagnostics::text_sink::report_global_digraph ( const lazily_created< digraphs::digraph > & )

inlinefinaloverridevirtual

Implements diagnostics::sink.

References final(), and report_global_digraph().

Referenced by report_global_digraph().

◆ set_buffer()

void diagnostics::text_sink::set_buffer ( per_sink_buffer * base )

finaloverridevirtual

Implements diagnostics::sink.

References gcc_assert, diagnostics::get_printer(), m_saved_output_buffer, and pp_buffer().

◆ set_main_input_filename()

virtual void diagnostics::sink::set_main_input_filename ( const char * )

inlinevirtualinherited

Reimplemented in diagnostics::html_sink, and diagnostics::sarif_sink.

Referenced by diagnostics::output_format_init().

◆ set_show_locations_in_nesting()

void diagnostics::text_sink::set_show_locations_in_nesting ( bool val )

inline

References m_show_locations_in_nesting.

◆ set_show_nesting()

void diagnostics::text_sink::set_show_nesting ( bool show_nesting )

inline

References m_show_nesting.

◆ set_show_nesting_levels()

void diagnostics::text_sink::set_show_nesting_levels ( bool show_nesting_levels )

inline

References m_show_nesting_levels.

◆ show_column_p()

bool diagnostics::text_sink::show_column_p ( ) const

inline

References diagnostics::sink::get_context(), diagnostics::context::m_show_column, and show_column_p().

Referenced by get_location_text(), report_current_module(), and show_column_p().

◆ show_locations_in_nesting_p()

bool diagnostics::text_sink::show_locations_in_nesting_p ( ) const

inline

References m_show_locations_in_nesting.

◆ show_nesting_p()

bool diagnostics::text_sink::show_nesting_p ( ) const

inline

References m_show_nesting.

◆ update_printer()

void diagnostics::text_sink::update_printer ( )

overridevirtual

Implements diagnostics::sink.

References diagnostics::sink::get_context(), pretty_printer::get_url_format(), m_follows_reference_printer, diagnostics::sink::m_printer, m_source_printing, and pp_show_color().

Field Documentation

◆ m_column_policy

column_policy diagnostics::text_sink::m_column_policy

protected

Referenced by get_column_policy(), and text_sink().

◆ m_context

context& diagnostics::sink::m_context

protectedinherited

Referenced by get_context(), get_diagram_theme(), get_logger(), diagnostics::text_sink::on_report_diagnostic(), diagnostics::text_sink::print_option_information(), sink(), diagnostics::html_sink::update_printer(), diagnostics::sarif_sink::update_printer(), and diagnostics::text_sink::~text_sink().

◆ m_follows_reference_printer

bool diagnostics::text_sink::m_follows_reference_printer

protected

Referenced by dump(), follows_reference_printer_p(), text_sink(), and update_printer().

◆ m_includes_seen

hash_set<location_t, false, location_hash>* diagnostics::text_sink::m_includes_seen

protected

Referenced by includes_seen_p(), text_sink(), and ~text_sink().

◆ m_last_module

const line_map_ordinary* diagnostics::text_sink::m_last_module

protected

Referenced by report_current_module(), and text_sink().

◆ m_printer

std::unique_ptr<pretty_printer> diagnostics::sink::m_printer

protectedinherited

Referenced by dump(), get_printer(), sink(), diagnostics::html_sink::update_printer(), diagnostics::sarif_sink::update_printer(), and diagnostics::text_sink::update_printer().

◆ m_saved_output_buffer

output_buffer* diagnostics::text_sink::m_saved_output_buffer

protected

Referenced by dump(), set_buffer(), and text_sink().

◆ m_show_locations_in_nesting

bool diagnostics::text_sink::m_show_locations_in_nesting

protected

Referenced by dump(), on_report_diagnostic(), set_show_locations_in_nesting(), and show_locations_in_nesting_p().

◆ m_show_nesting

bool diagnostics::text_sink::m_show_nesting

protected

Referenced by build_indent_prefix(), build_prefix(), dump(), on_report_diagnostic(), set_show_nesting(), show_nesting_p(), and text_sink().

◆ m_show_nesting_levels

bool diagnostics::text_sink::m_show_nesting_levels

protected

Referenced by build_indent_prefix(), dump(), set_show_nesting_levels(), and text_sink().

◆ m_source_printing

source_printing_options& diagnostics::text_sink::m_source_printing

protected

Referenced by get_source_printing_options(), get_source_printing_options(), print_path(), text_sink(), and update_printer().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ text_sink()

◆ ~text_sink()

Member Function Documentation

◆ after_diagnostic()

◆ append_note()

◆ build_indent_prefix()

◆ build_prefix()

◆ dump() [1/2]

◆ dump() [2/2]

◆ dump_kind()

◆ dyn_cast_text_sink()

◆ file_name_as_prefix()

◆ follows_reference_printer_p()

◆ get_column_policy()

◆ get_context()

◆ get_diagram_theme()

◆ get_location_print_policy()

◆ get_location_text()

◆ get_logger()

◆ get_printer()

◆ get_source_printing_options() [1/2]

◆ get_source_printing_options() [2/2]

◆ includes_seen_p()

◆ machine_readable_stderr_p()

◆ make_per_sink_buffer()

◆ maybe_line_and_column()

◆ on_begin_group()

◆ on_diagram()

◆ on_end_group()

◆ on_report_diagnostic()

◆ on_report_verbatim()

◆ print_any_cwe()

◆ print_any_rules()

◆ print_option_information()

◆ print_path()

◆ report_current_module()

◆ report_global_digraph()

◆ set_buffer()

◆ set_main_input_filename()

◆ set_show_locations_in_nesting()

◆ set_show_nesting()

◆ set_show_nesting_levels()

◆ show_column_p()

◆ show_locations_in_nesting_p()

◆ show_nesting_p()

◆ update_printer()

Field Documentation

◆ m_column_policy

◆ m_context

◆ m_follows_reference_printer

◆ m_includes_seen

◆ m_last_module

◆ m_printer

◆ m_saved_output_buffer

◆ m_show_locations_in_nesting

◆ m_show_nesting

◆ m_show_nesting_levels

◆ m_source_printing
