gimple-ssa-pta-constraints.cc File Reference

#include "config.h"
#include "system.h"
#include "coretypes.h"
#include "backend.h"
#include "rtl.h"
#include "tree.h"
#include "gimple.h"
#include "alloc-pool.h"
#include "tree-pass.h"
#include "ssa.h"
#include "cgraph.h"
#include "diagnostic-core.h"
#include "fold-const.h"
#include "stor-layout.h"
#include "stmt.h"
#include "gimple-iterator.h"
#include "tree-into-ssa.h"
#include "tree-dfa.h"
#include "gimple-walk.h"
#include "varasm.h"
#include "stringpool.h"
#include "attribs.h"
#include "tree-ssa.h"
#include "tree-cfg.h"
#include "gimple-range.h"
#include "ipa-modref-tree.h"
#include "ipa-modref.h"
#include "attr-fnspec.h"
#include "tree-ssa-structalias.h"
#include "gimple-ssa-pta-constraints.h"

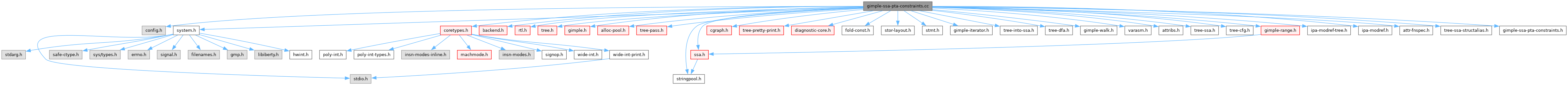

Include dependency graph for gimple-ssa-pta-constraints.cc:

Data Structures
struct	fieldoff

Namespaces
namespace	pointer_analysis

Typedefs
typedef struct fieldoff	fieldoff_s

Functions
static unsigned int	create_variable_info_for (tree, const char *, bool)
static bool	type_can_have_subvars (const_tree)
static void	make_param_constraints (varinfo_t)
static varinfo_t	get_call_vi (gcall *call)
static varinfo_t	get_call_use_vi (gcall *call)
static varinfo_t	get_call_clobber_vi (gcall *call)
static void	get_constraint_for_1 (tree, vec< ce_s > *, bool, bool)
static void	get_constraint_for (tree, vec< ce_s > *)
static void	get_constraint_for_rhs (tree, vec< ce_s > *)
static void	do_deref (vec< ce_s > *)
static constraint_t	new_constraint (const struct constraint_expr lhs, const struct constraint_expr rhs)
static void	insert_vi_for_tree (tree t, varinfo_t vi)
static const char *	alias_get_name (tree decl)
static varinfo_t	get_vi_for_tree (tree t)
static struct constraint_expr	new_scalar_tmp_constraint_exp (const char *name, bool add_id)
static void	get_constraint_for_ssa_var (tree t, vec< ce_s > *results, bool address_p)
static void	process_constraint (constraint_t t)
static unsigned HOST_WIDE_INT	bitpos_of_field (const tree fdecl)
static void	get_constraint_for_ptr_offset (tree ptr, tree offset, vec< ce_s > *results)
static void	get_constraint_for_component_ref (tree t, vec< ce_s > *results, bool address_p, bool lhs_p)
static void	get_constraint_for_address_of (tree t, vec< ce_s > *results)
static void	process_all_all_constraints (const vec< ce_s > &lhsc, const vec< ce_s > &rhsc)
static void	do_structure_copy (tree lhsop, tree rhsop)
static void	make_constraints_to (unsigned id, const vec< ce_s > &rhsc)
static void	make_constraint_to (unsigned id, tree op)
static void	make_constraint_from (varinfo_t vi, int from)
static void	make_copy_constraint (varinfo_t vi, int from)
static void	make_escape_constraint (tree op)
static void	make_indirect_escape_constraint (varinfo_t vi)
static void	make_transitive_closure_constraints (varinfo_t vi)
static void	make_any_offset_constraints (varinfo_t vi)
static tree	build_fake_var_decl (tree type)
static varinfo_t	make_heapvar (const char *name, bool add_id)
static varinfo_t	make_constraint_from_restrict (varinfo_t lhs, const char *name, bool add_id)
static varinfo_t	make_constraint_from_global_restrict (varinfo_t lhs, const char *name, bool add_id)
static struct constraint_expr	get_function_part_constraint (varinfo_t fi, unsigned part)
static void	handle_call_arg (gcall *stmt, tree arg, vec< ce_s > *results, int flags, int callescape_id, bool writes_global_memory)
static void	handle_rhs_call (gcall *stmt, vec< ce_s > *results, int implicit_eaf_flags, bool writes_global_memory, bool reads_global_memory)
static void	handle_lhs_call (gcall *stmt, tree lhs, int flags, vec< ce_s > &rhsc, tree fndecl)
static void	find_func_aliases_for_call_arg (varinfo_t fi, unsigned index, tree arg)
static bool	find_func_aliases_for_builtin_call (struct function *fn, gcall *t)
static void	find_func_aliases_for_call (struct function *fn, gcall *t)
static void	find_func_aliases (struct function *fn, gimple *origt)
static void	process_ipa_clobber (varinfo_t fi, tree ptr)
static void	find_func_clobbers (struct function *fn, gimple *origt)
static int	fieldoff_compare (const void *pa, const void *pb)
static void	sort_fieldstack (vec< fieldoff_s > &fieldstack)
static bool	var_can_have_subvars (const_tree v)
static bool	type_must_have_pointers (tree type)
static bool	field_must_have_pointers (tree t)
static bool	push_fields_onto_fieldstack (tree type, vec< fieldoff_s > *fieldstack, unsigned HOST_WIDE_INT offset)
static unsigned int	count_num_arguments (tree decl, bool *is_varargs)
static varinfo_t	create_function_info_for (tree decl, const char *name, bool add_id, bool nonlocal_p)
static bool	check_for_overlaps (const vec< fieldoff_s > &fieldstack)
static varinfo_t	create_variable_info_for_1 (tree decl, const char *name, bool add_id, bool handle_param, bitmap handled_struct_type, bool add_restrict=false)
static void	intra_create_variable_infos (struct function *fn)
static void	init_base_vars (void)
static bool	associate_varinfo_to_alias (struct cgraph_node *node, void *data)
static bool	refered_from_nonlocal_fn (struct cgraph_node *node, void *data)
static bool	refered_from_nonlocal_var (struct varpool_node *node, void *data)
static void	ipa_create_function_infos (void)
static void	ipa_create_global_variable_infos (void)
varinfo_t	pointer_analysis::lookup_vi_for_tree (tree t)
varinfo_t	pointer_analysis::lookup_call_use_vi (gcall *call)
varinfo_t	pointer_analysis::lookup_call_clobber_vi (gcall *call)
varinfo_t	pointer_analysis::get_fi_for_callee (gcall *call)
void	pointer_analysis::init_constraint_builder (void)
void	pointer_analysis::delete_constraint_builder (void)
void	pointer_analysis::intra_build_constraints (void)
void	pointer_analysis::ipa_build_constraints (void)

Variables
static hash_map< tree, varinfo_t > *	vi_for_tree
static hash_map< gimple *, varinfo_t > *	call_stmt_vars
static object_allocator< constraint >	constraint_pool ("Constraint pool")
struct obstack	fake_var_decl_obstack

Typedef Documentation

fieldoff_s

typedef struct fieldoff fieldoff_s

Function Documentation

alias_get_name()

const char * alias_get_name ( tree decl )

static

Return a printable name for DECL.

References alias_get_name(), DECL_ASSEMBLER_NAME_RAW, DECL_ASSEMBLER_NAME_SET_P, DECL_P, DECL_UID, dump_file, free(), get_name(), ggc_strdup, HAS_DECL_ASSEMBLER_NAME_P, IDENTIFIER_POINTER, NULL, SSA_NAME_VERSION, and TREE_CODE.

Referenced by alias_get_name(), get_vi_for_tree(), intra_create_variable_infos(), and ipa_create_function_infos().

associate_varinfo_to_alias()

bool associate_varinfo_to_alias ( struct cgraph_node * node, void * data )

static

Associate node with varinfo DATA.  Worker for
cgraph_for_symbol_thunks_and_aliases.

References associate_varinfo_to_alias(), and insert_vi_for_tree().

Referenced by associate_varinfo_to_alias(), and ipa_create_function_infos().

bitpos_of_field()

unsigned HOST_WIDE_INT bitpos_of_field ( const tree fdecl )

static

Return the position, in bits, of FIELD_DECL from the beginning of its
structure.

References bitpos_of_field(), DECL_FIELD_BIT_OFFSET, DECL_FIELD_OFFSET, tree_fits_uhwi_p(), and tree_to_uhwi().

Referenced by bitpos_of_field(), and push_fields_onto_fieldstack().

build_fake_var_decl()

tree build_fake_var_decl ( tree type )

static

Build a fake VAR_DECL acting as referrer to a DECL_UID.

References allocate_decl_uid(), build_fake_var_decl(), DECL_UID, fake_var_decl_obstack, layout_decl(), SET_DECL_PT_UID, TREE_SET_CODE, and TREE_TYPE.

Referenced by build_fake_var_decl(), create_function_info_for(), create_variable_info_for_1(), and make_heapvar().

check_for_overlaps()

bool check_for_overlaps ( const vec< fieldoff_s > & fieldstack )

static

Return true if FIELDSTACK contains fields that overlap.
FIELDSTACK is assumed to be sorted by offset.

References check_for_overlaps(), FOR_EACH_VEC_ELT, i, NULL, and fieldoff::offset.

Referenced by check_for_overlaps(), and create_variable_info_for_1().

count_num_arguments()

unsigned int count_num_arguments ( tree decl, bool * is_varargs )

static

Count the number of arguments DECL has, and set IS_VARARGS to true
if it is a varargs function.

References count_num_arguments(), DECL_ARGUMENTS, DECL_CHAIN, TREE_CHAIN, TREE_TYPE, TREE_VALUE, TYPE_ARG_TYPES, and void_type_node.

Referenced by count_num_arguments(), and create_function_info_for().

create_function_info_for()

varinfo_t create_function_info_for ( tree decl, const char * name, bool add_id, bool nonlocal_p )

static

Creation function node for DECL, using NAME, and return the index
of the variable we've created for the function.  If NONLOCAL_p, create
initial constraints.

References build_fake_var_decl(), count_num_arguments(), create_function_info_for(), pointer_analysis::variable_info::decl, DECL_ARGUMENTS, DECL_BY_REFERENCE, DECL_CHAIN, DECL_NAME, DECL_RESULT, DECL_STRUCT_FUNCTION, pointer_analysis::escaped_id, pointer_analysis::fi_clobbers, pointer_analysis::fi_parm_base, pointer_analysis::fi_result, pointer_analysis::fi_static_chain, pointer_analysis::fi_uses, pointer_analysis::first_vi_for_offset(), free(), pointer_analysis::variable_info::fullsize, gcc_assert, pointer_analysis::get_varinfo(), ggc_strdup, i, pointer_analysis::variable_info::id, insert_vi_for_tree(), pointer_analysis::variable_info::is_fn_info, pointer_analysis::variable_info::is_full_var, pointer_analysis::variable_info::is_global_var, pointer_analysis::variable_info::is_heap_var, pointer_analysis::variable_info::is_reg_var, pointer_analysis::lookup_vi_for_tree(), MAIN_NAME_P, make_constraint_from(), make_copy_constraint(), pointer_analysis::variable_info::may_have_pointers, pointer_analysis::new_var_info(), pointer_analysis::variable_info::next, pointer_analysis::nonlocal_id, NULL, NULL_TREE, pointer_analysis::variable_info::offset, ptr_type_node, pointer_analysis::variable_info::size, function::static_chain_decl, TREE_TYPE, and VOID_TYPE_P.

Referenced by create_function_info_for(), and ipa_create_function_infos().

create_variable_info_for()

unsigned int create_variable_info_for ( tree decl, const char * name, bool add_id )

static

References varpool_node::all_refs_explicit_p(), create_variable_info_for(), create_variable_info_for_1(), DECL_HARD_REGISTER, DECL_INITIAL, pointer_analysis::escaped_id, pointer_analysis::fi_result, FOR_EACH_VEC_ELT, cgraph_node::get(), varpool_node::get(), get_constraint_for(), get_function_part_constraint(), get_vi_for_tree(), i, pointer_analysis::variable_info::id, pointer_analysis::in_ipa_mode, insert_vi_for_tree(), pointer_analysis::variable_info::is_global_var, pointer_analysis::variable_info::is_reg_var, pointer_analysis::variable_info::is_restrict_var, make_constraint_from_global_restrict(), make_copy_constraint(), pointer_analysis::variable_info::may_have_pointers, new_constraint(), pointer_analysis::new_var_info(), pointer_analysis::nonlocal_id, NULL, NULL_TREE, pointer_analysis::variable_info::only_restrict_pointers, POINTER_TYPE_P, process_constraint(), SCALAR, TREE_CODE, TREE_TYPE, TYPE_RESTRICT, VAR_P, and pointer_analysis::vi_next().

Referenced by create_variable_info_for(), and get_vi_for_tree().

create_variable_info_for_1()

varinfo_t create_variable_info_for_1 ( tree decl, const char * name, bool add_id, bool handle_param, bitmap handled_struct_type, bool add_restrict = false )

static

Create a varinfo structure for NAME and DECL, and add it to VARMAP.
This will also create any varinfo structures necessary for fields
of DECL.  DECL is a function parameter if HANDLE_PARAM is set.
HANDLED_STRUCT_TYPE is used to register struct types reached by following
restrict pointers.  This is needed to prevent infinite recursion.
If ADD_RESTRICT, pretend that the pointer NAME is restrict even if DECL
does not advertise it.

References bitmap_bit_p, bitmap_clear_bit(), bitmap_set_bit, build_fake_var_decl(), check_for_overlaps(), create_variable_info_for_1(), DECL_EXTERNAL, DECL_P, DECL_SIZE, dump_file, free(), pointer_analysis::variable_info::fullsize, ggc_strdup, fieldoff::has_unknown_size, pointer_analysis::variable_info::head, HOST_WIDE_INT_PRINT_DEC, i, pointer_analysis::variable_info::id, pointer_analysis::in_ipa_mode, insert_vi_for_tree(), pointer_analysis::variable_info::is_full_var, is_global_var(), pointer_analysis::variable_info::is_restrict_var, pointer_analysis::variable_info::is_unknown_size_var, make_constraint_from(), make_param_constraints(), fieldoff::may_have_pointers, pointer_analysis::variable_info::may_have_pointers, pointer_analysis::variable_info::name, pointer_analysis::new_var_info(), pointer_analysis::variable_info::next, NULL, fieldoff::offset, pointer_analysis::variable_info::offset, fieldoff::only_restrict_pointers, pointer_analysis::variable_info::only_restrict_pointers, POINTER_TYPE_P, push_fields_onto_fieldstack(), fieldoff::restrict_pointed_type, fieldoff::size, pointer_analysis::variable_info::size, sort_fieldstack(), tree_fits_uhwi_p(), tree_to_uhwi(), TREE_TYPE, type_contains_placeholder_p(), TYPE_RESTRICT, TYPE_SIZE, TYPE_UID, pointer_analysis::use_field_sensitive, var_can_have_subvars(), and pointer_analysis::vi_next().

Referenced by create_variable_info_for(), create_variable_info_for_1(), and intra_create_variable_infos().

do_deref()

void do_deref ( vec< ce_s > * constraints )

static

Dereference the constraint expression CONS, and return the result.
DEREF (ADDRESSOF) = SCALAR
DEREF (SCALAR) = DEREF
DEREF (DEREF) = (temp = DEREF1; result = DEREF (temp))
This is needed so that we can handle dereferencing DEREF constraints.

References pointer_analysis::ADDRESSOF, pointer_analysis::constraints, pointer_analysis::DEREF, do_deref(), FOR_EACH_VEC_ELT, gcc_unreachable, i, new_constraint(), new_scalar_tmp_constraint_exp(), process_constraint(), SCALAR, and pointer_analysis::constraint_expr::var.

Referenced by do_deref(), find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), get_constraint_for_1(), and get_constraint_for_component_ref().

do_structure_copy()

void do_structure_copy ( tree lhsop, tree rhsop )

static

Handle aggregate copies by expanding into copies of the respective
fields of the structures.

References pointer_analysis::ADDRESSOF, pointer_analysis::anything_id, pointer_analysis::DEREF, do_structure_copy(), gcc_assert, gcc_unreachable, get_constraint_for(), get_constraint_for_rhs(), get_ref_base_and_extent_hwi(), pointer_analysis::get_varinfo(), pointer_analysis::variable_info::is_full_var, pointer_analysis::variable_info::may_have_pointers, new_constraint(), pointer_analysis::constraint_expr::offset, pointer_analysis::variable_info::offset, process_all_all_constraints(), process_constraint(), ranges_overlap_p(), SCALAR, pointer_analysis::variable_info::size, pointer_analysis::constraint_expr::type, UNKNOWN_OFFSET, and pointer_analysis::constraint_expr::var.

Referenced by do_structure_copy(), and find_func_aliases().

field_must_have_pointers()

bool field_must_have_pointers ( tree t )

static

References field_must_have_pointers(), TREE_TYPE, and type_must_have_pointers().

Referenced by field_must_have_pointers(), and push_fields_onto_fieldstack().

fieldoff_compare()

int fieldoff_compare ( const void * pa, const void * pb )

static

qsort comparison function for two fieldoff's PA and PB.

References fieldoff_compare(), fieldoff::offset, and fieldoff::size.

Referenced by fieldoff_compare(), and sort_fieldstack().

find_func_aliases()

void find_func_aliases ( struct function * fn, gimple * origt )

static

Walk statement T setting up aliasing constraints according to the
references found in T.  This function is the main part of the
constraint builder.  AI points to auxiliary alias information used
when building alias sets and computing alias grouping heuristics.

References AGGREGATE_TYPE_P, as_a(), CONVERT_EXPR_CODE_P, function::decl, DECL_P, do_structure_copy(), dyn_cast(), pointer_analysis::escaped_id, pointer_analysis::escaped_return_id, pointer_analysis::fi_result, find_func_aliases(), find_func_aliases_for_call(), FOR_EACH_VEC_ELT, get_base_address(), get_constraint_for(), get_constraint_for_address_of(), get_constraint_for_ptr_offset(), get_constraint_for_rhs(), get_function_part_constraint(), get_vi_for_tree(), gimple_asm_input_op(), gimple_asm_ninputs(), gimple_asm_noutputs(), gimple_asm_output_op(), gimple_assign_lhs(), gimple_assign_rhs1(), gimple_assign_rhs2(), gimple_assign_rhs3(), gimple_assign_rhs_code(), gimple_assign_single_p(), gimple_num_ops(), gimple_op(), gimple_phi_arg_def(), gimple_phi_num_args(), gimple_phi_result(), gimple_return_retval(), i, pointer_analysis::in_ipa_mode, is_gimple_assign(), is_gimple_call(), pointer_analysis::variable_info::is_global_var, pointer_analysis::variable_info::is_ipa_escape_point, pointer_analysis::lookup_vi_for_tree(), make_constraint_to(), make_constraints_to(), make_escape_constraint(), new_constraint(), pointer_analysis::nonlocal_id, NULL, NULL_TREE, pointer_analysis::constraint_expr::offset, parse_input_constraint(), parse_output_constraint(), process_all_all_constraints(), process_constraint(), SCALAR, TREE_CLOBBER_P, TREE_CODE, TREE_PURPOSE, TREE_STRING_POINTER, TREE_TYPE, TREE_VALUE, truth_value_p(), pointer_analysis::constraint_expr::type, and pointer_analysis::constraint_expr::var.

Referenced by find_func_aliases(), pointer_analysis::intra_build_constraints(), and pointer_analysis::ipa_build_constraints().

find_func_aliases_for_builtin_call()

bool find_func_aliases_for_builtin_call ( struct function * fn, gcall * t )

static

Create constraints for the builtin call T.  Return true if the call
was handled, otherwise false.

References pointer_analysis::ADDRESSOF, pointer_analysis::anything_id, BUILT_IN_NORMAL, CASE_BUILT_IN_TM_LOAD, CASE_BUILT_IN_TM_STORE, function::decl, pointer_analysis::variable_info::decl, DECL_EXTERNAL, DECL_FUNCTION_CODE(), do_deref(), ERF_NOALIAS, pointer_analysis::escaped_id, pointer_analysis::fi_result, pointer_analysis::fi_static_chain, find_func_aliases_for_builtin_call(), find_func_aliases_for_call_arg(), pointer_analysis::fndecl_maybe_in_other_partition(), FOR_EACH_VEC_ELT, gcc_assert, gcc_unreachable, get_call_clobber_vi(), get_call_use_vi(), get_constraint_for(), get_constraint_for_ptr_offset(), get_function_part_constraint(), pointer_analysis::get_varinfo(), get_vi_for_tree(), gimple_call_arg(), gimple_call_builtin_p(), gimple_call_fndecl(), gimple_call_lhs(), gimple_call_return_flags(), handle_lhs_call(), i, pointer_analysis::variable_info::id, pointer_analysis::in_ipa_mode, pointer_analysis::integer_id, integer_zerop(), pointer_analysis::variable_info::is_global_var, pointer_analysis::variable_info::is_heap_var, pointer_analysis::lookup_vi_for_tree(), make_any_offset_constraints(), make_constraint_from(), make_constraint_to(), make_heapvar(), new_constraint(), pointer_analysis::nonlocal_id, pointer_analysis::nothing_id, NULL, NULL_TREE, pointer_analysis::constraint_expr::offset, process_all_all_constraints(), process_constraint(), SCALAR, TREE_CODE, TREE_OPERAND, pointer_analysis::constraint_expr::type, and pointer_analysis::constraint_expr::var.

Referenced by find_func_aliases_for_builtin_call(), and find_func_aliases_for_call().

find_func_aliases_for_call()

void find_func_aliases_for_call ( struct function * fn, gcall * t )

static

Create constraints for the call T.

References aggregate_value_p(), pointer_analysis::variable_info::decl, DECL_IS_OPERATOR_DELETE_P, DECL_IS_REPLACEABLE_OPERATOR, do_deref(), ECF_CONST, ECF_LOOPING_CONST_OR_PURE, ECF_NOVOPS, ECF_PURE, pointer_analysis::fi_result, pointer_analysis::fi_static_chain, find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), find_func_aliases_for_call_arg(), fndecl_built_in_p(), FOR_EACH_VEC_ELT, gcc_checking_assert, get_call_clobber_vi(), get_call_use_vi(), get_constraint_for(), get_constraint_for_address_of(), get_constraint_for_rhs(), pointer_analysis::get_fi_for_callee(), get_function_part_constraint(), gimple_call_arg(), gimple_call_chain(), gimple_call_flags(), gimple_call_fndecl(), gimple_call_fntype(), gimple_call_from_new_or_delete(), gimple_call_internal_p(), gimple_call_lhs(), gimple_call_num_args(), gimple_call_return_flags(), handle_lhs_call(), handle_rhs_call(), pointer_analysis::in_ipa_mode, pointer_analysis::variable_info::is_fn_info, make_constraint_to(), new_constraint(), NULL_TREE, process_all_all_constraints(), and process_constraint().

Referenced by find_func_aliases(), and find_func_aliases_for_call().

find_func_aliases_for_call_arg()

void find_func_aliases_for_call_arg ( varinfo_t fi, unsigned index, tree arg )

static

Create constraints for assigning call argument ARG to the incoming parameter
INDEX of function FI.

References pointer_analysis::fi_parm_base, find_func_aliases_for_call_arg(), FOR_EACH_VEC_ELT, get_constraint_for_rhs(), get_function_part_constraint(), new_constraint(), and process_constraint().

Referenced by find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), and find_func_aliases_for_call_arg().

find_func_clobbers()

void find_func_clobbers ( struct function * fn, gimple * origt )

static

Walk statement T setting up clobber and use constraints according to the
references found in T.  This function is a main part of the
IPA constraint builder.

References pointer_analysis::anything_id, as_a(), auto_var_in_fn_p(), BUILT_IN_NORMAL, function::decl, pointer_analysis::variable_info::decl, DECL_FUNCTION_CODE(), DECL_P, dyn_cast(), pointer_analysis::escaped_id, pointer_analysis::fi_clobbers, pointer_analysis::fi_uses, find_func_clobbers(), pointer_analysis::first_vi_for_offset(), pointer_analysis::fndecl_maybe_in_other_partition(), FOR_EACH_VEC_ELT, gcc_assert, gcc_unreachable, get_constraint_for(), get_constraint_for_address_of(), get_constraint_for_ptr_offset(), pointer_analysis::get_fi_for_callee(), get_function_part_constraint(), get_vi_for_tree(), gimple_assign_rhs1(), gimple_assign_single_p(), gimple_call_arg(), gimple_call_builtin_p(), gimple_call_fndecl(), gimple_call_num_args(), gimple_get_lhs(), gimple_has_lhs(), gimple_return_retval(), gimple_vdef(), gimple_vuse(), handled_component_p(), i, pointer_analysis::variable_info::id, pointer_analysis::in_ipa_mode, INDIRECT_REF_P, pointer_analysis::variable_info::is_fn_info, is_gimple_min_invariant(), pointer_analysis::lookup_call_clobber_vi(), pointer_analysis::lookup_call_use_vi(), pointer_analysis::lookup_vi_for_tree(), make_constraint_from(), make_copy_constraint(), new_constraint(), NULL, NULL_TREE, process_constraint(), process_ipa_clobber(), TREE_CODE, and TREE_OPERAND.

Referenced by find_func_clobbers(), and pointer_analysis::ipa_build_constraints().

get_call_clobber_vi()

varinfo_t get_call_clobber_vi ( gcall * call )

static

Lookup or create the variable for the call statement CALL representing
the clobbers.

References get_call_clobber_vi(), get_call_vi(), and pointer_analysis::vi_next().

Referenced by find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), get_call_clobber_vi(), and handle_call_arg().

get_call_use_vi()

varinfo_t get_call_use_vi ( gcall * call )

static

Lookup or create the variable for the call statement CALL representing
the uses.

References get_call_use_vi(), and get_call_vi().

Referenced by find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), get_call_use_vi(), handle_call_arg(), and handle_rhs_call().

get_call_vi()

varinfo_t get_call_vi ( gcall * call )

static

Lookup or create the variable for the call statement CALL.

References call_stmt_vars, pointer_analysis::variable_info::fullsize, get_call_vi(), pointer_analysis::variable_info::id, pointer_analysis::variable_info::is_full_var, pointer_analysis::variable_info::is_reg_var, pointer_analysis::new_var_info(), pointer_analysis::variable_info::next, NULL_TREE, pointer_analysis::variable_info::offset, and pointer_analysis::variable_info::size.

Referenced by get_call_clobber_vi(), get_call_use_vi(), and get_call_vi().

get_constraint_for()

void get_constraint_for ( tree t, vec< ce_s > * results )

static

Given a gimple tree T, return the constraint expression vector for it.

References gcc_assert, get_constraint_for(), and get_constraint_for_1().

Referenced by create_variable_info_for(), do_structure_copy(), find_func_aliases(), find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), find_func_clobbers(), get_constraint_for(), and handle_lhs_call().

get_constraint_for_1()

void get_constraint_for_1 ( tree t, vec< ce_s > * results, bool address_p, bool lhs_p )

static

Given a tree T, return the constraint expression for it.

References address_p(), pointer_analysis::ADDRESSOF, pointer_analysis::anything_id, CONSTRUCTOR_ELTS, CONSTRUCTOR_NELTS, pointer_analysis::DEREF, do_deref(), FOR_EACH_CONSTRUCTOR_VALUE, FOR_EACH_VEC_ELT, get_constraint_for_1(), get_constraint_for_address_of(), get_constraint_for_component_ref(), get_constraint_for_ptr_offset(), get_constraint_for_ssa_var(), pointer_analysis::get_varinfo(), i, integer_zerop(), pointer_analysis::nonlocal_id, pointer_analysis::nothing_id, pointer_analysis::constraint_expr::offset, SCALAR, pointer_analysis::string_id, tcc_constant, tcc_declaration, tcc_exceptional, tcc_expression, tcc_reference, TREE_CODE, TREE_CODE_CLASS, tree_fits_uhwi_p(), TREE_OPERAND, TREE_THIS_VOLATILE, tree_to_uhwi(), TREE_TYPE, pointer_analysis::constraint_expr::type, type_can_have_subvars(), TYPE_SIZE, UNKNOWN_OFFSET, pointer_analysis::constraint_expr::var, VAR_P, and pointer_analysis::vi_next().

Referenced by get_constraint_for(), get_constraint_for_1(), get_constraint_for_address_of(), get_constraint_for_component_ref(), and get_constraint_for_rhs().

get_constraint_for_address_of()

void get_constraint_for_address_of ( tree t, vec< ce_s > * results )

static

Given a tree T, return the constraint expression for taking the
address of it.

References pointer_analysis::ADDRESSOF, pointer_analysis::DEREF, FOR_EACH_VEC_ELT, get_constraint_for_1(), get_constraint_for_address_of(), i, and SCALAR.

Referenced by find_func_aliases(), find_func_aliases_for_call(), find_func_clobbers(), get_constraint_for_1(), get_constraint_for_address_of(), and handle_rhs_call().

get_constraint_for_component_ref()

void get_constraint_for_component_ref ( tree t, vec< ce_s > * results, bool address_p, bool lhs_p )

static

Given a COMPONENT_REF T, return the constraint_expr vector for it.
If address_p is true the result will be taken its address of.
If lhs_p is true then the constraint expression is assumed to be used
as the lhs.

References address_p(), pointer_analysis::ADDRESSOF, AGGREGATE_TYPE_P, pointer_analysis::anything_id, CONSTANT_CLASS_P, pointer_analysis::DEREF, do_deref(), dump_file, dump_flags, pointer_analysis::variable_info::fullsize, gcc_assert, gcc_unreachable, get_constraint_for_1(), get_constraint_for_component_ref(), get_ref_base_and_extent(), pointer_analysis::get_varinfo(), handled_component_p(), pointer_analysis::variable_info::id, INDIRECT_REF_P, pointer_analysis::integer_id, integer_zerop(), poly_int< N, C >::is_constant(), pointer_analysis::variable_info::is_full_var, known_eq, mem_ref_offset(), pointer_analysis::variable_info::next, pointer_analysis::nothing_id, pointer_analysis::constraint_expr::offset, pointer_analysis::variable_info::offset, SCALAR, pointer_analysis::variable_info::size, TDF_DETAILS, poly_int< N, C >::to_shwi(), TREE_CODE, TREE_OPERAND, TREE_TYPE, pointer_analysis::constraint_expr::type, UNKNOWN_OFFSET, pointer_analysis::constraint_expr::var, and pointer_analysis::vi_next().

Referenced by get_constraint_for_1(), and get_constraint_for_component_ref().

get_constraint_for_ptr_offset()

void get_constraint_for_ptr_offset ( tree ptr, tree offset, vec< ce_s > * results )

static

Get constraint expressions for offsetting PTR by OFFSET.  Stores the
resulting constraint expressions in *RESULTS.

References pointer_analysis::ADDRESSOF, pointer_analysis::first_or_preceding_vi_for_offset(), wi::fits_shwi_p(), gcc_assert, gcc_unreachable, get_constraint_for_ptr_offset(), get_constraint_for_rhs(), pointer_analysis::get_varinfo(), pointer_analysis::variable_info::head, pointer_analysis::variable_info::id, pointer_analysis::variable_info::is_full_var, NULL_TREE, pointer_analysis::constraint_expr::offset, pointer_analysis::variable_info::offset, SCALAR, SIGNED, pointer_analysis::variable_info::size, wi::to_wide(), TREE_CODE, pointer_analysis::constraint_expr::type, UNKNOWN_OFFSET, pointer_analysis::use_field_sensitive, pointer_analysis::constraint_expr::var, and pointer_analysis::vi_next().

Referenced by find_func_aliases(), find_func_aliases_for_builtin_call(), find_func_clobbers(), get_constraint_for_1(), and get_constraint_for_ptr_offset().

get_constraint_for_rhs()

void get_constraint_for_rhs ( tree t, vec< ce_s > * results )

static

Given a gimple tree T, return the constraint expression vector for it
to be used as the rhs of a constraint.

References gcc_assert, get_constraint_for_1(), and get_constraint_for_rhs().

Referenced by do_structure_copy(), find_func_aliases(), find_func_aliases_for_call(), find_func_aliases_for_call_arg(), get_constraint_for_ptr_offset(), get_constraint_for_rhs(), make_constraint_to(), and process_ipa_clobber().

get_constraint_for_ssa_var()

void get_constraint_for_ssa_var ( tree t, vec< ce_s > * results, bool address_p )

static

Get a constraint expression vector from an SSA_VAR_P node.
If address_p is true, the result will be taken its address of.

References address_p(), DECL_EXTERNAL, DECL_P, DECL_PT_UID, DECL_PT_UID_SET_P, DECL_UID, gcc_assert, varpool_node::get(), get_constraint_for_ssa_var(), get_vi_for_tree(), pointer_analysis::nothing_id, pointer_analysis::constraint_expr::offset, SCALAR, ssa_defined_default_def_p(), SSA_NAME_IS_DEFAULT_DEF, SSA_NAME_VAR, TREE_CODE, TREE_STATIC, pointer_analysis::constraint_expr::type, pointer_analysis::constraint_expr::var, VAR_P, and pointer_analysis::vi_next().

Referenced by get_constraint_for_1(), and get_constraint_for_ssa_var().

get_function_part_constraint()

struct constraint_expr get_function_part_constraint ( varinfo_t fi, unsigned part )

static

Get a constraint for the requested part of a function designator FI
when operating in IPA mode.

References pointer_analysis::anything_id, pointer_analysis::DEREF, pointer_analysis::first_vi_for_offset(), gcc_assert, get_function_part_constraint(), pointer_analysis::variable_info::id, pointer_analysis::in_ipa_mode, SCALAR, and TREE_CODE.

Referenced by create_variable_info_for(), find_func_aliases(), find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), find_func_aliases_for_call_arg(), find_func_clobbers(), get_function_part_constraint(), and process_ipa_clobber().

get_vi_for_tree()

varinfo_t get_vi_for_tree ( tree t )

static

Find the variable id for tree T in the map.
If T doesn't exist in the map, create an entry for it and return it.

References alias_get_name(), create_variable_info_for(), pointer_analysis::get_varinfo(), get_vi_for_tree(), NULL, and vi_for_tree.

Referenced by create_variable_info_for(), find_func_aliases(), find_func_aliases_for_builtin_call(), find_func_clobbers(), get_constraint_for_ssa_var(), pointer_analysis::get_fi_for_callee(), get_vi_for_tree(), intra_create_variable_infos(), and ipa_create_global_variable_infos().

handle_call_arg()

void handle_call_arg ( gcall * stmt, tree arg, vec< ce_s > * results, int flags, int callescape_id, bool writes_global_memory )

static

Produce constraints for argument ARG of call STMT with eaf flags
FLAGS.  RESULTS is array holding constraints for return value.
CALLESCAPE_ID is variable where call loocal escapes are added.
WRITES_GLOVEL_MEMORY is true if callee may write global memory.

References pointer_analysis::DEREF, EAF_NO_DIRECT_CLOBBER, EAF_NO_DIRECT_ESCAPE, EAF_NO_DIRECT_READ, EAF_NO_INDIRECT_CLOBBER, EAF_NO_INDIRECT_ESCAPE, EAF_NO_INDIRECT_READ, EAF_NOT_RETURNED_DIRECTLY, EAF_NOT_RETURNED_INDIRECTLY, EAF_UNUSED, gcc_checking_assert, get_call_clobber_vi(), get_call_use_vi(), gimple_call_lhs(), handle_call_arg(), pointer_analysis::variable_info::id, pointer_analysis::variable_info::is_reg_var, make_any_offset_constraints(), make_constraint_to(), make_copy_constraint(), make_escape_constraint(), make_indirect_escape_constraint(), make_transitive_closure_constraints(), new_constraint(), pointer_analysis::new_var_info(), NULL, NULL_TREE, pointer_analysis::constraint_expr::offset, process_constraint(), SCALAR, pointer_analysis::constraint_expr::type, UNKNOWN_OFFSET, and pointer_analysis::constraint_expr::var.

Referenced by handle_call_arg(), and handle_rhs_call().

handle_lhs_call()

void handle_lhs_call ( gcall * stmt, tree lhs, int flags, vec< ce_s > & rhsc, tree fndecl )

static

For non-IPA mode, generate constraints necessary for a call
that returns a pointer and assigns it to LHS.  This simply makes
the LHS point to global and escaped variables.

References pointer_analysis::ADDRESSOF, BUILT_IN_NORMAL, pointer_analysis::variable_info::decl, DECL_EXTERNAL, DECL_P, ERF_NOALIAS, ERF_RETURN_ARG_MASK, ERF_RETURNS_ARG, pointer_analysis::escaped_id, fndecl_built_in_p(), get_base_address(), get_constraint_for(), gimple_call_arg(), gimple_call_num_args(), handle_lhs_call(), pointer_analysis::variable_info::id, is_global_var(), pointer_analysis::variable_info::is_global_var, make_constraint_from(), make_heapvar(), pointer_analysis::nonlocal_id, pointer_analysis::constraint_expr::offset, process_all_all_constraints(), SCALAR, pointer_analysis::constraint_expr::type, and pointer_analysis::constraint_expr::var.

Referenced by find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), and handle_lhs_call().

handle_rhs_call()

void handle_rhs_call ( gcall * stmt, vec< ce_s > * results, int implicit_eaf_flags, bool writes_global_memory, bool reads_global_memory )

static

For non-IPA mode or for a function with body not available.
Generate constraints necessary for a call on the RHS and collect return
value constraint to RESULTS to be used later in handle_lhs_call.

IMPLICIT_EAF_FLAGS are added to each function argument.  If
WRITES_GLOBAL_MEMORY is true function is assumed to possibly write to global
memory.  Similar for READS_GLOBAL_MEMORY.

References pointer_analysis::ADDRESSOF, pointer_analysis::determine_global_memory_access(), EAF_NO_DIRECT_ESCAPE, EAF_NOT_RETURNED_DIRECTLY, EAF_UNUSED, pointer_analysis::escaped_id, FOR_EACH_VEC_ELT, get_call_use_vi(), get_constraint_for_address_of(), gimple_call_arg(), gimple_call_arg_flags(), gimple_call_chain(), gimple_call_lhs(), gimple_call_num_args(), gimple_call_retslot_flags(), gimple_call_return_slot_opt_p(), gimple_call_static_chain_flags(), handle_call_arg(), handle_rhs_call(), i, pointer_analysis::variable_info::id, make_constraints_to(), make_copy_constraint(), new_constraint(), pointer_analysis::new_var_info(), pointer_analysis::nonlocal_id, NULL, NULL_TREE, process_constraint(), SCALAR, TREE_ADDRESSABLE, and TREE_TYPE.

Referenced by find_func_aliases_for_call(), and handle_rhs_call().

init_base_vars()

void init_base_vars ( void )

static

Initialize the always-existing constraint variables for NULL
ANYTHING, READONLY, and INTEGER.

References pointer_analysis::ADDRESSOF, pointer_analysis::anything_id, pointer_analysis::constraints, pointer_analysis::DEREF, pointer_analysis::escaped_id, pointer_analysis::escaped_return_id, pointer_analysis::variable_info::fullsize, gcc_assert, pointer_analysis::variable_info::id, init_base_vars(), pointer_analysis::integer_id, pointer_analysis::variable_info::is_artificial_var, pointer_analysis::variable_info::is_global_var, pointer_analysis::variable_info::is_special_var, pointer_analysis::variable_info::may_have_pointers, new_constraint(), pointer_analysis::new_var_info(), pointer_analysis::nonlocal_id, pointer_analysis::nothing_id, NULL, NULL_TREE, pointer_analysis::variable_info::offset, process_constraint(), SCALAR, pointer_analysis::variable_info::size, pointer_analysis::storedanything_id, pointer_analysis::string_id, UNKNOWN_OFFSET, and pointer_analysis::varmap.

Referenced by init_base_vars(), and pointer_analysis::init_constraint_builder().

insert_vi_for_tree()

void insert_vi_for_tree ( tree t, varinfo_t vi )

static

Insert ID as the variable id for tree T in the vi_for_tree map.

References gcc_assert, insert_vi_for_tree(), and vi_for_tree.

Referenced by associate_varinfo_to_alias(), create_function_info_for(), create_variable_info_for(), create_variable_info_for_1(), insert_vi_for_tree(), intra_create_variable_infos(), and make_heapvar().

intra_create_variable_infos()

void intra_create_variable_infos ( struct function * fn )

static

Create varinfo structures for parameters, return value and the static
chain of FN.  Intended for intraprocedural mode.

References alias_get_name(), BITMAP_ALLOC, BITMAP_FREE, create_variable_info_for_1(), function::decl, DECL_ARGUMENTS, DECL_BY_REFERENCE, DECL_CHAIN, DECL_CXX_CONSTRUCTOR_P, DECL_RESULT, get_vi_for_tree(), insert_vi_for_tree(), intra_create_variable_infos(), make_constraint_from(), make_param_constraints(), pointer_analysis::nonlocal_id, NULL, NULL_TREE, function::static_chain_decl, and pointer_analysis::vi_next().

Referenced by pointer_analysis::intra_build_constraints(), and intra_create_variable_infos().

ipa_create_function_infos()

void ipa_create_function_infos ( void )

static

Create function infos.

References alias_get_name(), associate_varinfo_to_alias(), pointer_analysis::constraints, create_function_info_for(), DECL_ASSEMBLER_NAME, DECL_ASSEMBLER_NAME_SET_P, DECL_ATTRIBUTES, DECL_EXTERNAL, pointer_analysis::dump_constraints(), dump_file, dump_flags, FOR_EACH_DEFINED_FUNCTION, gcc_assert, IDENTIFIER_POINTER, ipa_create_function_infos(), lookup_attribute(), refered_from_nonlocal_fn(), TDF_DETAILS, and TREE_PUBLIC.

Referenced by pointer_analysis::ipa_build_constraints(), and ipa_create_function_infos().

ipa_create_global_variable_infos()

void ipa_create_global_variable_infos ( void )

static

Create constraints for global variables and their initializers.

References symtab_node::alias, symtab_node::analyzed, varpool_node::call_for_symbol_and_aliases(), pointer_analysis::constraints, symtab_node::decl, DECL_EXTERNAL, pointer_analysis::dump_constraints(), dump_file, dump_flags, FOR_EACH_VARIABLE, symtab_node::force_output, get_vi_for_tree(), ipa_create_global_variable_infos(), pointer_analysis::variable_info::is_ipa_escape_point, symtab_node::ref_by_asm, refered_from_nonlocal_var(), TDF_DETAILS, TREE_PUBLIC, and symtab_node::used_from_other_partition.

Referenced by pointer_analysis::ipa_build_constraints(), and ipa_create_global_variable_infos().

make_any_offset_constraints()

void make_any_offset_constraints ( varinfo_t vi )

static

Add constraints to that the solution of VI has all subvariables added.

References pointer_analysis::variable_info::id, make_any_offset_constraints(), new_constraint(), process_constraint(), SCALAR, and UNKNOWN_OFFSET.

Referenced by find_func_aliases_for_builtin_call(), handle_call_arg(), and make_any_offset_constraints().

make_constraint_from()

void make_constraint_from ( varinfo_t vi, int from )

static

Create a constraint ID = &FROM.

References pointer_analysis::ADDRESSOF, pointer_analysis::variable_info::id, make_constraint_from(), new_constraint(), process_constraint(), and SCALAR.

Referenced by create_function_info_for(), create_variable_info_for_1(), find_func_aliases_for_builtin_call(), find_func_clobbers(), handle_lhs_call(), intra_create_variable_infos(), make_constraint_from(), make_constraint_from_restrict(), and make_param_constraints().

make_constraint_from_global_restrict()

varinfo_t make_constraint_from_global_restrict ( varinfo_t lhs, const char * name, bool add_id )

static

Create a new artificial heap variable with NAME and make a
constraint from it to LHS.  Set flags according to a tag used
for tracking restrict pointers and make the artificial heap
point to global memory.

References make_constraint_from_global_restrict(), make_constraint_from_restrict(), make_copy_constraint(), and pointer_analysis::nonlocal_id.

Referenced by create_variable_info_for(), and make_constraint_from_global_restrict().

make_constraint_from_restrict()

varinfo_t make_constraint_from_restrict ( varinfo_t lhs, const char * name, bool add_id )

static

Create a new artificial heap variable with NAME and make a
constraint from it to LHS.  Set flags according to a tag used
for tracking restrict pointers.

References pointer_analysis::variable_info::id, pointer_analysis::variable_info::is_global_var, pointer_analysis::variable_info::is_restrict_var, make_constraint_from(), make_constraint_from_restrict(), make_heapvar(), and pointer_analysis::variable_info::may_have_pointers.

Referenced by make_constraint_from_global_restrict(), and make_constraint_from_restrict().

make_constraint_to()

void make_constraint_to ( unsigned id, tree op )

static

Create a constraint ID = OP.

References get_constraint_for_rhs(), make_constraint_to(), and make_constraints_to().

Referenced by find_func_aliases(), find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), handle_call_arg(), make_constraint_to(), and make_escape_constraint().

make_constraints_to()

void make_constraints_to ( unsigned id, const vec< ce_s > & rhsc )

static

Create constraints ID = { rhsc }.

References FOR_EACH_VEC_ELT, make_constraints_to(), new_constraint(), process_constraint(), and SCALAR.

Referenced by find_func_aliases(), handle_rhs_call(), make_constraint_to(), and make_constraints_to().

make_copy_constraint()

void make_copy_constraint ( varinfo_t vi, int from )

static

Create a constraint ID = FROM.

References pointer_analysis::variable_info::id, make_copy_constraint(), new_constraint(), process_constraint(), and SCALAR.

Referenced by create_function_info_for(), create_variable_info_for(), find_func_clobbers(), handle_call_arg(), handle_rhs_call(), make_constraint_from_global_restrict(), and make_copy_constraint().

make_escape_constraint()

void make_escape_constraint ( tree op )

static

Make constraints necessary to make OP escape.

References pointer_analysis::escaped_id, make_constraint_to(), and make_escape_constraint().

Referenced by find_func_aliases(), handle_call_arg(), and make_escape_constraint().

make_heapvar()

varinfo_t make_heapvar ( const char * name, bool add_id )

static

Create a new artificial heap variable with NAME.
Return the created variable.

References build_fake_var_decl(), DECL_EXTERNAL, pointer_analysis::variable_info::fullsize, insert_vi_for_tree(), pointer_analysis::variable_info::is_full_var, pointer_analysis::variable_info::is_heap_var, pointer_analysis::variable_info::is_unknown_size_var, make_heapvar(), pointer_analysis::new_var_info(), pointer_analysis::variable_info::offset, ptr_type_node, and pointer_analysis::variable_info::size.

Referenced by find_func_aliases_for_builtin_call(), handle_lhs_call(), make_constraint_from_restrict(), and make_heapvar().

make_indirect_escape_constraint()

void make_indirect_escape_constraint ( varinfo_t vi )

static

Make constraint necessary to make all indirect references
from VI escape.

References pointer_analysis::DEREF, pointer_analysis::escaped_id, pointer_analysis::variable_info::id, make_indirect_escape_constraint(), new_constraint(), process_constraint(), SCALAR, and UNKNOWN_OFFSET.

Referenced by handle_call_arg(), and make_indirect_escape_constraint().

make_param_constraints()

void make_param_constraints ( varinfo_t vi )

static

Register the constraints for function parameter related VI.

References pointer_analysis::variable_info::is_full_var, make_constraint_from(), make_param_constraints(), pointer_analysis::variable_info::may_have_pointers, pointer_analysis::nonlocal_id, pointer_analysis::variable_info::only_restrict_pointers, and pointer_analysis::vi_next().

Referenced by create_variable_info_for_1(), intra_create_variable_infos(), and make_param_constraints().

make_transitive_closure_constraints()

void make_transitive_closure_constraints ( varinfo_t vi )

static

Add constraints to that the solution of VI is transitively closed.

References pointer_analysis::DEREF, pointer_analysis::variable_info::id, make_transitive_closure_constraints(), new_constraint(), process_constraint(), SCALAR, and UNKNOWN_OFFSET.

Referenced by handle_call_arg(), and make_transitive_closure_constraints().

new_constraint()

constraint_t new_constraint ( const struct constraint_expr lhs, const struct constraint_expr rhs )

static

Create a new constraint consisting of LHS and RHS expressions.

References constraint_pool, pointer_analysis::constraint::lhs, new_constraint(), and pointer_analysis::constraint::rhs.

Referenced by create_variable_info_for(), do_deref(), do_structure_copy(), find_func_aliases(), find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), find_func_aliases_for_call_arg(), find_func_clobbers(), handle_call_arg(), handle_rhs_call(), init_base_vars(), make_any_offset_constraints(), make_constraint_from(), make_constraints_to(), make_copy_constraint(), make_indirect_escape_constraint(), make_transitive_closure_constraints(), new_constraint(), process_all_all_constraints(), process_constraint(), and process_ipa_clobber().

new_scalar_tmp_constraint_exp()

struct constraint_expr new_scalar_tmp_constraint_exp ( const char * name, bool add_id )

static

Get a scalar constraint expression for a new temporary variable.

References new_scalar_tmp_constraint_exp(), pointer_analysis::new_var_info(), NULL_TREE, pointer_analysis::constraint_expr::offset, SCALAR, pointer_analysis::constraint_expr::type, and pointer_analysis::constraint_expr::var.

Referenced by do_deref(), new_scalar_tmp_constraint_exp(), process_all_all_constraints(), and process_constraint().

process_all_all_constraints()

void process_all_all_constraints ( const vec< ce_s > & lhsc, const vec< ce_s > & rhsc )

static

Efficiently generates constraints from all entries in *RHSC to all
entries in *LHSC.

References FOR_EACH_VEC_ELT, i, new_constraint(), new_scalar_tmp_constraint_exp(), process_all_all_constraints(), and process_constraint().

Referenced by do_structure_copy(), find_func_aliases(), find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), handle_lhs_call(), and process_all_all_constraints().

process_constraint()

void process_constraint ( constraint_t t )

static

Process constraint T, performing various simplifications and then
adding it to our list of overall constraints.

References pointer_analysis::variable_info::address_taken, pointer_analysis::ADDRESSOF, pointer_analysis::anything_id, pointer_analysis::constraints, pointer_analysis::DEREF, gcc_assert, pointer_analysis::get_varinfo(), pointer_analysis::variable_info::head, pointer_analysis::constraint::lhs, pointer_analysis::variable_info::may_have_pointers, new_constraint(), new_scalar_tmp_constraint_exp(), process_constraint(), pointer_analysis::constraint::rhs, SCALAR, pointer_analysis::constraint_expr::type, and pointer_analysis::varmap.

Referenced by create_variable_info_for(), do_deref(), do_structure_copy(), find_func_aliases(), find_func_aliases_for_builtin_call(), find_func_aliases_for_call(), find_func_aliases_for_call_arg(), find_func_clobbers(), handle_call_arg(), handle_rhs_call(), init_base_vars(), make_any_offset_constraints(), make_constraint_from(), make_constraints_to(), make_copy_constraint(), make_indirect_escape_constraint(), make_transitive_closure_constraints(), process_all_all_constraints(), process_constraint(), and process_ipa_clobber().

process_ipa_clobber()

void process_ipa_clobber ( varinfo_t fi, tree ptr )

static

Create a constraint adding to the clobber set of FI the memory
pointed to by PTR.

References pointer_analysis::fi_clobbers, FOR_EACH_VEC_ELT, get_constraint_for_rhs(), get_function_part_constraint(), i, new_constraint(), process_constraint(), process_ipa_clobber(), and vNULL.

Referenced by find_func_clobbers(), and process_ipa_clobber().

push_fields_onto_fieldstack()

bool push_fields_onto_fieldstack ( tree type, vec< fieldoff_s > * fieldstack, unsigned HOST_WIDE_INT offset )

static

Given a TYPE, and a vector of field offsets FIELDSTACK, push all
the fields of TYPE onto fieldstack, recording their offsets along
the way.

OFFSET is used to keep track of the offset in this entire
structure, rather than just the immediately containing structure.
Returns false if the caller is supposed to handle the field we
recursed for.

References bitpos_of_field(), DECL_CHAIN, DECL_SIZE, empty_p(), field_must_have_pointers(), fieldoff::has_unknown_size, integer_zerop(), NULL, NULL_TREE, fieldoff::offset, POINTER_TYPE_P, push_fields_onto_fieldstack(), TREE_CODE, tree_fits_uhwi_p(), tree_to_uhwi(), TREE_TYPE, TYPE_FIELDS, TYPE_RESTRICT, and var_can_have_subvars().

Referenced by create_variable_info_for_1(), and push_fields_onto_fieldstack().

refered_from_nonlocal_fn()

bool refered_from_nonlocal_fn ( struct cgraph_node * node, void * data )

static

Compute whether node is referred to non-locally.  Worker for
cgraph_for_symbol_thunks_and_aliases.

References DECL_ATTRIBUTES, DECL_EXTERNAL, lookup_attribute(), refered_from_nonlocal_fn(), and TREE_PUBLIC.

Referenced by ipa_create_function_infos(), and refered_from_nonlocal_fn().

refered_from_nonlocal_var()

bool refered_from_nonlocal_var ( struct varpool_node * node, void * data )

static

Same for varpool nodes.

References DECL_EXTERNAL, refered_from_nonlocal_var(), and TREE_PUBLIC.

Referenced by ipa_create_global_variable_infos(), and refered_from_nonlocal_var().

sort_fieldstack()

void sort_fieldstack ( vec< fieldoff_s > & fieldstack )

static

Sort a fieldstack according to the field offset and sizes.

References fieldoff_compare(), and sort_fieldstack().

Referenced by create_variable_info_for_1(), and sort_fieldstack().

type_can_have_subvars()

bool type_can_have_subvars ( const_tree t )

inlinestatic

Return true if T is a type that can have subvars.

References TREE_CODE, and type_can_have_subvars().

Referenced by get_constraint_for_1(), type_can_have_subvars(), and var_can_have_subvars().

type_must_have_pointers()

bool type_must_have_pointers ( tree type )

static

Return true if T is a type that does contain pointers.

References FUNC_OR_METHOD_TYPE_P, POINTER_TYPE_P, TREE_CODE, TREE_TYPE, and type_must_have_pointers().

Referenced by field_must_have_pointers(), and type_must_have_pointers().

var_can_have_subvars()

bool var_can_have_subvars ( const_tree v )

inlinestatic

Return true if V is a tree that we can have subvars for.
Normally, this is any aggregate type.  Also complex
types which are not gimple registers can have subvars.

References DECL_P, TREE_THIS_VOLATILE, TREE_TYPE, type_can_have_subvars(), and var_can_have_subvars().

Referenced by create_variable_info_for_1(), push_fields_onto_fieldstack(), and var_can_have_subvars().

Variable Documentation

call_stmt_vars

hash_map<gimple *, varinfo_t>* call_stmt_vars

static

A map mapping call statements to per-stmt variables for uses
and clobbers specific to the call.

Referenced by pointer_analysis::delete_constraint_builder(), get_call_vi(), pointer_analysis::init_constraint_builder(), and pointer_analysis::lookup_call_use_vi().

constraint_pool

object_allocator< constraint > constraint_pool("Constraint pool") ( "Constraint pool" )

static

Allocator for 'constraints' vector.

Referenced by pointer_analysis::delete_constraint_builder(), and new_constraint().

fake_var_decl_obstack

struct obstack fake_var_decl_obstack

Temporary storage for fake var decls.

Referenced by build_fake_var_decl(), pointer_analysis::delete_constraint_builder(), and pointer_analysis::init_constraint_builder().

vi_for_tree

hash_map<tree, varinfo_t>* vi_for_tree

static

Map from trees to variable infos.

Referenced by pointer_analysis::delete_constraint_builder(), get_vi_for_tree(), pointer_analysis::init_constraint_builder(), insert_vi_for_tree(), and pointer_analysis::lookup_vi_for_tree().
