#include "config.h"
#include "system.h"
#include "coretypes.h"
#include "target.h"
#include "function.h"
#include "tree.h"
#include "alloc-pool.h"
#include "tree-pass.h"
#include "cgraph.h"
#include "symbol-summary.h"
#include "tree-vrp.h"
#include "symtab-thunks.h"
#include "sreal.h"
#include "ipa-cp.h"
#include "ipa-prop.h"
#include "ipa-fnsummary.h"
#include "ipa-modref-tree.h"
#include "ipa-modref.h"
#include "symtab-clones.h"
#include "ipa-locality-cloning.h"

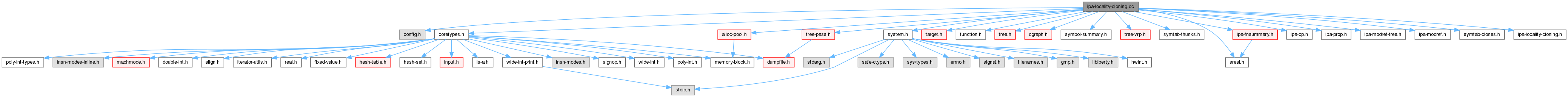

Include dependency graph for ipa-locality-cloning.cc:

Data Structures
struct	locality_order

struct	profile_stats

Macros
#define	INCLUDE_ALGORITHM

Functions
static bool	node_partitioned_p (cgraph_node *node)

static void	add_node_to_partition (locality_partition part, cgraph_node *node)

static bool	node_in_partition_p (locality_partition partition, cgraph_node *node)

static int	compare_node_uids (cgraph_node n1, cgraph_node n2)

static int	static_profile_cmp (const void pa, const void pb)

static int	compare_edge_profile_counts (const void pa, const void pb)

static locality_partition	create_partition (int &npartitions)

static void	init_profile_stats (profile_stats stats, cgraph_node target=NULL)

static bool	accumulate_profile_counts_after_cloning (cgraph_node node, void data)

static void	adjust_profile_info_for_non_self_rec_edges (auto_vec< cgraph_edge * > &edges, cgraph_node new_node, cgraph_node orig_node)

static void	adjust_profile_info (cgraph_node new_node, cgraph_node orig_node)

static bool	edge_redirectable_p (cgraph_edge *edge, lto_locality_cloning_model cm)

static cgraph_node *	create_locality_clone (cgraph_node *cnode, locality_partition partition, int &cl_num, lto_locality_cloning_model cm)

static void	adjust_recursive_callees (cgraph_node clone, cgraph_node new_callee, cgraph_node *orig_callee)

static void	inline_clones (cgraph_node caller, cgraph_node orig_inlined_to)

static cgraph_node *	clone_node_as_needed (cgraph_edge *edge, locality_partition partition, int &cl_num, lto_locality_cloning_model cm)

static sreal	accumulate_incoming_edge_frequency (cgraph_edge *edge)

static bool	suitable_for_locality_cloning_p (cgraph_edge *edge, lto_locality_cloning_model cm)

static void	partition_callchain (cgraph_edge *edge, locality_partition partition, bool clone_further_p, lto_locality_cloning_model cloning_model, double freq_cutoff, int size, int &cl_num)

static bool	is_entry_node_p (cgraph_node *node)

static bool	locality_determine_ipa_order (auto_vec< locality_order * > *order)

static bool	locality_determine_static_order (auto_vec< locality_order * > *order)

static void	locality_partition_and_clone (int max_locality_partition_size, lto_locality_cloning_model cloning_model, int freq_denominator, int size)

static int	lc_execute (void)

ipa_opt_pass_d *	make_pass_ipa_locality_cloning (gcc::context *ctxt)

Variables
vec< locality_partition >	locality_partitions

hash_map< cgraph_node , cgraph_node >	node_to_clone

hash_map< cgraph_node , cgraph_node >	clone_to_node

hash_map< cgraph_node , auto_vec< cgraph_node > >	caller_to_callees

Macro Definition Documentation

◆ INCLUDE_ALGORITHM

#define INCLUDE_ALGORITHM

Code locality based function cloning.
   Copyright The GNU Toolchain Authors

This file is part of GCC.

GCC is free software; you can redistribute it and/or modify it under
the terms of the GNU General Public License as published by the Free
Software Foundation; either version 3, or (at your option) any later
version.

GCC is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY; without even the implied warranty of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE.  See the GNU General Public License
for more details.

You should have received a copy of the GNU General Public License
along with GCC; see the file COPYING3.  If not see
<http://www.gnu.org/licenses/>.

This file implements cloning required to improve partitioning of the
callgraph for locality considerations.

Partitioning for improving code locality.
This pass aims to place frequently executed callchains closer together in
memory to improve performance through improved locality.  If any frequent
callchains cannot be placed together because they are already placed
elsewhere, local function clones are created and all callers near to the
clones are redirected to use this copy.

Locality code placement is done in 2 parts.
1. IPA pass to be executed after ipa-inline and before ipa-pure-const.
   Execute stage prepares the plan to place all nodes into partitions.
2. WPA Partition stage actually implements the plan.

Brief overview of the IPA pass:
1. Create and sort callchains.  If PGO is available, use real profile
counts.  Otherwise, use a set of heuristics to sort the callchains.
2. Create a partition plan for the callchains, processing them in the sorted
   order.
   1. If a function is unpartitioned, place it in the current partition.
   2. If a function is already placed in a partition away from current
      partition as part of another callchain:
      Create a local clone in current partition, if cloning criteria is
      satisfied.
   3. Redirect any new caller to a local clone if one exists.
Partition size is param controlled to fine tune per program behavior.

Function Documentation

◆ accumulate_incoming_edge_frequency()

static sreal accumulate_incoming_edge_frequency ( cgraph_edge * edge )

static


Accumulate frequency of all edges from EDGE->caller to EDGE->callee.

References cgraph_edge::caller, count, cgraph_edge::next_caller, and cgraph_edge::sreal_frequency().

Referenced by partition_callchain().

◆ accumulate_profile_counts_after_cloning()

static bool accumulate_profile_counts_after_cloning	(	cgraph_node *	node,
		void *	data )

static


Helper function of to accumulate call counts.

References cgraph_node::callers, and cgraph_edge::next_caller.

Referenced by adjust_profile_info().

◆ add_node_to_partition()

static void add_node_to_partition	(	locality_partition	part,
		cgraph_node *	node )

static


Add symbol NODE to partition PART.

References add_node_to_partition(), symtab_node::alias, symtab_node::aux, cgraph_edge::callee, cgraph_node::callees, cgraph_edge::caller, cgraph_node::callers, dyn_cast(), FOR_EACH_ALIAS, gcc_checking_assert, symtab_node::get_partitioning_class(), cgraph_edge::inline_failed, cgraph_node::inlined_to, locality_partition_def::insns, ipa_size_summaries, cgraph_edge::next_callee, cgraph_edge::next_caller, node_partitioned_p(), locality_partition_def::nodes, locality_partition_def::part_id, ipa_ref::referring, SYMBOL_DUPLICATE, SYMBOL_PARTITION, cgraph_node::thunk, and symtab_node::transparent_alias.

Referenced by add_node_to_partition(), locality_partition_and_clone(), and partition_callchain().

◆ adjust_profile_info()

static void adjust_profile_info	(	cgraph_node *	new_node,
		cgraph_node *	orig_node )

static

Adjust profile counts of NEW_NODE and ORIG_NODE, where NEW_NODE is a clone
of OLD_NODE.
Assumes that all eligible edges from current partition so far are redirected
to NEW_NODE and recursive edges are adjusted.

References accumulate_profile_counts_after_cloning(), profile_count::adjust_for_ipa_scaling(), profile_count::apply_scale(), cgraph_node::call_for_symbol_thunks_and_aliases(), cgraph_node::callees, profile_count::combine_with_ipa_count(), cgraph_node::count, profile_count::dump(), symtab_node::dump_asm_name(), dump_file, cgraph_node::indirect_calls, init_profile_stats(), profile_count::ipa(), cgraph_node::local, cgraph_edge::next_callee, profile_stats::nonrec_count, profile_count::nonzero_p(), profile_stats::rec_count, and profile_count::zero().

Referenced by clone_node_as_needed().

◆ adjust_profile_info_for_non_self_rec_edges()

static void adjust_profile_info_for_non_self_rec_edges	(	auto_vec< cgraph_edge * > &	edges,
		cgraph_node *	new_node,
		cgraph_node *	orig_node )

static

NEW_NODE is a previously created clone of ORIG_NODE already present in
current partition.  EDGES contains newly redirected edges to NEW_NODE.
Adjust profile information for both nodes and the edge.

References profile_count::adjust_for_ipa_scaling(), cgraph_node::callees, profile_count::combine_with_ipa_count(), cgraph_node::count, count, profile_count::dump(), symtab_node::dump_asm_name(), dump_file, i, cgraph_node::indirect_calls, profile_count::ipa(), cgraph_edge::next_callee, and profile_count::zero().

Referenced by clone_node_as_needed().

◆ adjust_recursive_callees()

static void adjust_recursive_callees	(	cgraph_node *	clone,
		cgraph_node *	new_callee,
		cgraph_node *	orig_callee )

static

Redirect recursive edges of CLONE to correctly point to CLONE.  As part of
cloning process, all callee edges of a node are just duplicated but not
redirected.  Therefore, these edges still call to original of CLONE.

For non-inlined CLONEs, NEW_CALLEE == CLONE and ORIG_CALLEE is CLONE's
original node.

For inlined node, self recursion to CLONE's original same as non-inlined,
additionally, calls to CLONE->inlined_to are also recursive:
NEW_CALLEE == CLONE->inlined_into and
ORIG_CALLEE == original node of CLONE->inlined_into.

References symtab_node::alias, cgraph_node::callees, symtab_node::dump_asm_name(), dump_file, dyn_cast(), cgraph_node::expand_all_artificial_thunks(), gcc_assert, cgraph_edge::next_callee, node_to_clone, symtab_node::noninterposable_alias(), and NULL.

Referenced by clone_node_as_needed(), and inline_clones().

◆ clone_node_as_needed()

static cgraph_node * clone_node_as_needed	(	cgraph_edge *	edge,
		locality_partition	partition,
		int &	cl_num,
		lto_locality_cloning_model	cm )

static

Clone EDGE->CALLEE if it or a clone of it is not already in PARTITION.
Redirect all callers of EDGE->CALLEE that are in PARTITION, not just the
EDGE.  If a clone is already present in PARTITION, redirect all edges from
EDGE->CALLER to EDGE->CALLEE.  This is because we only visit one edge per
caller to callee and redirect for all others from there.

If cloning, also recursively clone inlined functions till the end of the
callchain because inlined clones have 1-1 exclusive copy and edge from
caller to inlined node.

There are 2 flows possible:
1. Only redirect
   1.1. cnode is already in current partition - cnode mustn't be a
   locality_clone -> nothing to do
   1.2. A clone of cnode is in current partition - find out if it's the
   correct clone for edge - must be a locality_clone but the exact same
   kind as callee i.e. orig or cp/sra clone, if yes, redirect, else go to #2
   1.3. Cnode/a clone of cnode is in current partition but caller is inlined
2. Clone and redirect
   2.1. cnode is original node
   2.2. cnode itself is a clone
   Clone inlines
Flavors of edges:
1. Normal -> orig nodes, locality clones or cp/sra clones
2. Recursive -> direct recursion
3. Alias -> recursion via aliasing or as a result of IPA code duplication
4. Inline -> shouldn't be included in callchain.

References adjust_profile_info(), adjust_profile_info_for_non_self_rec_edges(), adjust_recursive_callees(), cgraph_node::callees, clone_to_node, create_locality_clone(), symtab_node::dump_asm_name(), dump_file, edge_redirectable_p(), gcc_assert, inline_clones(), cgraph_edge::next_callee, node_in_partition_p(), node_to_clone, NULL, and symtab.

Referenced by partition_callchain().

◆ compare_edge_profile_counts()

static int compare_edge_profile_counts	(	const void *	pa,
		const void *	pb )

static


Helper function for qsort; sort nodes by profile count.

References a, b, profile_count::compatible_p(), and static_profile_cmp().

Referenced by locality_determine_ipa_order().

◆ compare_node_uids()

static int compare_node_uids	(	cgraph_node *	n1,
		cgraph_node *	n2 )

static


Helper function for qsort; to break ties.

References gcc_assert, and symtab_node::get_uid().

Referenced by static_profile_cmp().

◆ create_locality_clone()

static cgraph_node * create_locality_clone	(	cgraph_node *	cnode,
		locality_partition	partition,
		int &	cl_num,
		lto_locality_cloning_model	cm )

static

Create a locality clone of CNODE and redirect all callers present in
PARTITION.
Create a clone dpending on whether CNODE itself is a clone or not.

References cgraph_node::callees, cgraph_node::callers, clone_function_name(), copy_node(), cgraph_node::count, cgraph_node::create_clone(), symtab_node::decl, DECL_ASSEMBLER_NAME, DECL_NAME, symtab_node::definition, symtab_node::dump_asm_name(), dump_file, edge_redirectable_p(), IDENTIFIER_POINTER, cgraph_node::ipa_transforms_to_apply, symtab_node::name(), node_in_partition_p(), NULL, SET_DECL_ASSEMBLER_NAME, set_new_clone_decl_and_node_flags(), and vNULL.

Referenced by clone_node_as_needed().

◆ create_partition()

static locality_partition create_partition ( int & npartitions )

static


Create and return a new partition and increment NPARTITIONS.

References locality_partition_def::insns, locality_partitions, locality_partition_def::nodes, and locality_partition_def::part_id.

Referenced by locality_partition_and_clone().

◆ edge_redirectable_p()

static bool edge_redirectable_p	(	cgraph_edge *	edge,
		lto_locality_cloning_model	cm )

inlinestatic


Return true if EDGE can be safely redirected to another callee.

References AVAIL_INTERPOSABLE, and LTO_LOCALITY_NON_INTERPOSABLE_CLONING.

Referenced by clone_node_as_needed(), and create_locality_clone().

◆ init_profile_stats()

static void init_profile_stats	(	profile_stats *	stats,
		cgraph_node *	target = NULL )

inlinestatic


Initialize fields of STATS.

References NULL, and profile_count::zero().

Referenced by adjust_profile_info().

◆ inline_clones()

static void inline_clones	(	cgraph_node *	caller,
		cgraph_node *	orig_inlined_to )

static

Create clones for CALLER's inlined callees, ORIG_INLINED_TO is the original
node from clone_as_needed () such that new_inlined_to is a clone of it.

References adjust_recursive_callees(), cgraph_node::callees, cgraph_edge::caller, clone_to_node, cgraph_node::create_clone(), symtab_node::decl, cgraph_node::dump(), dump_file, thunk_info::get(), thunk_info::get_create(), inline_clones(), cgraph_node::inlined_to, node_to_clone, NULL, cgraph_node::thunk, and vNULL.

Referenced by clone_node_as_needed(), and inline_clones().

◆ is_entry_node_p()

static bool is_entry_node_p ( cgraph_node * node )

static


Determine whether NODE is an entrypoint to a callchain.

References symtab_node::alias, cgraph_node::callers, symtab_node::get_partitioning_class(), is_entry_node_p(), cgraph_edge::next_caller, SYMBOL_PARTITION, and cgraph_node::ultimate_alias_target().

Referenced by is_entry_node_p(), locality_determine_ipa_order(), and locality_determine_static_order().

◆ lc_execute()

static int lc_execute ( void )

static


Entry point to locality-clone pass.

References symtab_node::aux, FOR_EACH_SYMBOL, locality_partition_and_clone(), and NULL.

◆ locality_determine_ipa_order()

static bool locality_determine_ipa_order ( auto_vec< locality_order * > * order )

static

Determine order of all external nodes if PGO profile is available.
Store the order in ORDER.

References cgraph_node::callees, compare_edge_profile_counts(), cgraph_node::count, count, symtab_node::dump_asm_name(), dump_file, FOR_EACH_DEFINED_FUNCTION, symtab_node::get_partitioning_class(), profile_count::initialized_p(), profile_count::ipa(), profile_count::ipa_p(), is_entry_node_p(), symtab_node::no_reorder, and SYMBOL_PARTITION.

Referenced by locality_partition_and_clone().

◆ locality_determine_static_order()

static bool locality_determine_static_order ( auto_vec< locality_order * > * order )

static

Determine order of all external nodes if only static profile is available.
Store the order in ORDER.

References cgraph_node::callees, count, symtab_node::dump_asm_name(), dump_file, FOR_EACH_DEFINED_FUNCTION, symtab_node::get_partitioning_class(), is_entry_node_p(), symtab_node::no_reorder, static_profile_cmp(), and SYMBOL_PARTITION.

Referenced by locality_partition_and_clone().

◆ locality_partition_and_clone()

static void locality_partition_and_clone	(	int	max_locality_partition_size,
		lto_locality_cloning_model	cloning_model,
		int	freq_denominator,
		int	size )

static

Partitioning for code locality.
1. Create and sort callchains.  If PGO is available, use real profile
counts.  Otherwise, use a set of heuristics to sort the callchains.
2. Partition the external nodes and their callchains in the determined order
   2.1. If !partition, partition, else try and clone if it satisfies cloning
   criteria.
3. Partition all other unpartitioned nodes.

References add_node_to_partition(), cgraph_node::callees, cgraph_node::count, create_partition(), symtab_node::dump_asm_name(), dump_file, i, profile_count::ipa_p(), locality_determine_ipa_order(), locality_determine_static_order(), node_partitioned_p(), symtab_node::order, partition_callchain(), symtab, and vNULL.

Referenced by lc_execute().

◆ make_pass_ipa_locality_cloning()

ipa_opt_pass_d * make_pass_ipa_locality_cloning ( gcc::context * ctxt )

◆ node_in_partition_p()

static bool node_in_partition_p	(	locality_partition	partition,
		cgraph_node *	node )

static


Return TRUE if NODE is in PARTITION.

References symtab_node::aux.

Referenced by clone_node_as_needed(), create_locality_clone(), and partition_callchain().

◆ node_partitioned_p()

static bool node_partitioned_p ( cgraph_node * node )

inlinestatic


Return true if NODE is already in some partition.

References symtab_node::aux.

Referenced by add_node_to_partition(), locality_partition_and_clone(), and partition_callchain().

◆ partition_callchain()

static void partition_callchain	(	cgraph_edge *	edge,
		locality_partition	partition,
		bool	clone_further_p,
		lto_locality_cloning_model	cloning_model,
		double	freq_cutoff,
		int	size,
		int &	cl_num )

static

Partition EDGE->CALLEE into PARTITION or clone if already partitioned and
satisfies cloning criteria such as CLONING_MODEL, REAL_FREQ and SIZE
cut-offs and CLONE_FURTHER_P set by previous caller.

callgraph can have multiple caller to callee edges for multiple callsites
For the first such edge, we make decisions about cutoffs and cloning because
we redirect ALL callsites to cloned callee, not just one of them.

References accumulate_incoming_edge_frequency(), add_node_to_partition(), symtab_node::alias, cgraph_node::callees, cgraph_edge::caller, caller_to_callees, clone_node_as_needed(), symtab_node::dump_asm_name(), dump_file, symtab_node::get_partitioning_class(), cgraph_node::inlined_to, ipa_size_summaries, LTO_LOCALITY_NON_INTERPOSABLE_CLONING, cgraph_edge::next_callee, node_in_partition_p(), node_partitioned_p(), NULL, partition_callchain(), suitable_for_locality_cloning_p(), SYMBOL_PARTITION, and sreal::to_double().

Referenced by locality_partition_and_clone(), and partition_callchain().

◆ static_profile_cmp()

static int static_profile_cmp	(	const void *	pa,
		const void *	pb )

static


Helper function for qsort; sort nodes by order.

References a, b, and compare_node_uids().

Referenced by compare_edge_profile_counts(), and locality_determine_static_order().

◆ suitable_for_locality_cloning_p()

static bool suitable_for_locality_cloning_p	(	cgraph_edge *	edge,
		lto_locality_cloning_model	cm )

static

Determine if EDGE->CALLEE is suitable for cloning.  It is assummed that the
callee is not an inlined node.

References symtab_node::alias, AVAIL_INTERPOSABLE, cgraph_node::clone_of, cgraph_node::count, symtab_node::definition, profile_count::ipa(), LTO_LOCALITY_NON_INTERPOSABLE_CLONING, profile_count::nonzero_p(), and cgraph_node::versionable.

Referenced by partition_callchain().

Variable Documentation

◆ caller_to_callees

hash_map<cgraph_node *, auto_vec<cgraph_node *> > caller_to_callees


Map from caller to all callees already visited for partitioning.

Referenced by partition_callchain().

◆ clone_to_node

hash_map<cgraph_node *, cgraph_node *> clone_to_node


Map from clone to its original node.

Referenced by clone_node_as_needed(), and inline_clones().

◆ locality_partitions

vec<locality_partition> locality_partitions

Locality partitions, assigns nodes to partitions.  These are used later in
WPA partitioning.

Referenced by create_partition().

◆ node_to_clone

hash_map<cgraph_node *, cgraph_node *> node_to_clone

Map from original node to its latest clone.  Gets overwritten whenever a new
clone is created from the same node.

Referenced by adjust_recursive_callees(), clone_node_as_needed(), and inline_clones().

Data Structures

Macros

Functions

Variables

Macro Definition Documentation

◆ INCLUDE_ALGORITHM

Function Documentation

◆ accumulate_incoming_edge_frequency()

◆ accumulate_profile_counts_after_cloning()

◆ add_node_to_partition()

◆ adjust_profile_info()

◆ adjust_profile_info_for_non_self_rec_edges()

◆ adjust_recursive_callees()

◆ clone_node_as_needed()

◆ compare_edge_profile_counts()

◆ compare_node_uids()

◆ create_locality_clone()

◆ create_partition()

◆ edge_redirectable_p()

◆ init_profile_stats()

◆ inline_clones()

◆ is_entry_node_p()

◆ lc_execute()

◆ locality_determine_ipa_order()

◆ locality_determine_static_order()

◆ locality_partition_and_clone()

◆ make_pass_ipa_locality_cloning()

◆ node_in_partition_p()

◆ node_partitioned_p()

◆ partition_callchain()

◆ static_profile_cmp()

◆ suitable_for_locality_cloning_p()

Variable Documentation

◆ caller_to_callees

◆ clone_to_node

◆ locality_partitions

◆ node_to_clone
